Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

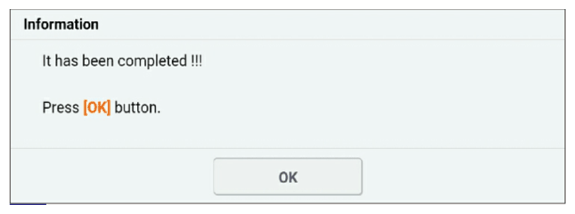

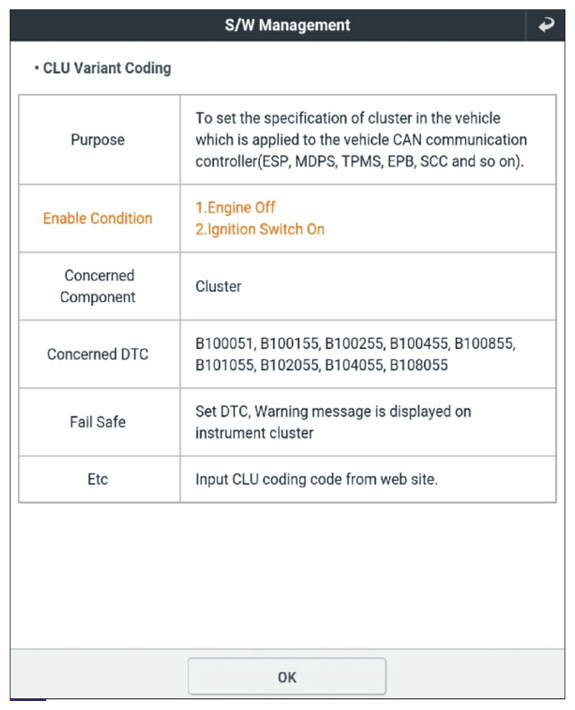

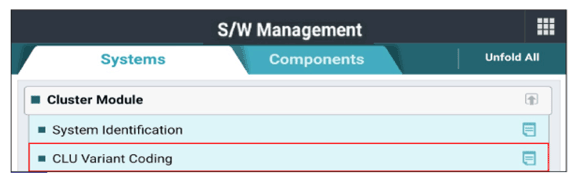

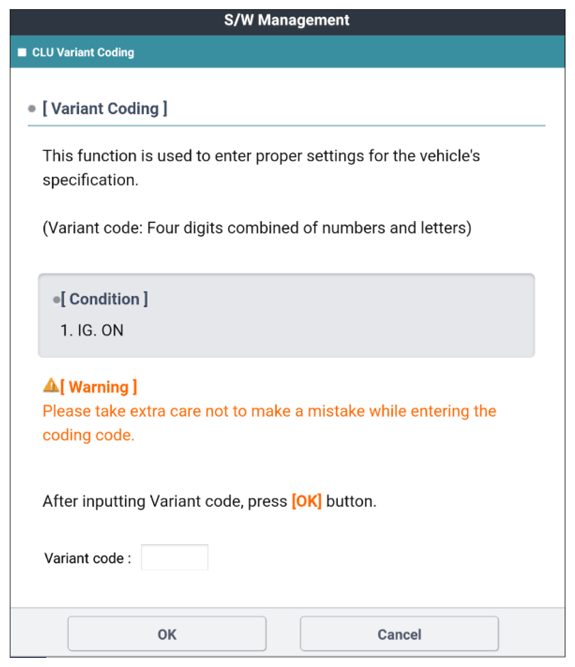

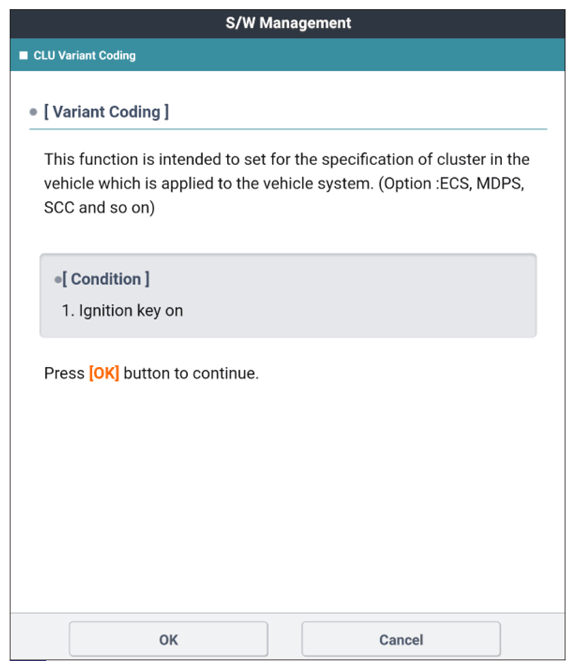

 Fig.1 to 5
G14959969Courtesy of KIA MOTORS AMERICA, INC.
G14959970Courtesy of KIA MOTORS AMERICA, INC.
G14959971Courtesy of KIA MOTORS AMERICA, INC.
G14959972Courtesy of KIA MOTORS AMERICA, INC.
G14959973Courtesy of KIA MOTORS AMERICA, INC.
