Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

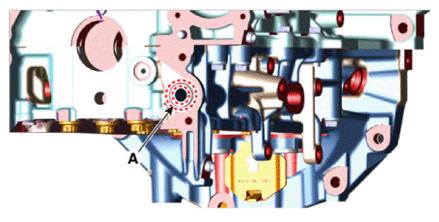

Install the new O-ring (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The O-ring is not reused.

Install the timing chain cover.

Be sure to remove hardened sealants, foreign substances, oil, dust, moisture, etc. on the liquid gasket sealing surface (cam carrier, cylinder head, cylinder block, low crankcase). Spray the cleaner on the sealing surface and wipe with a clean cloth.

Apply sealant for liquid gasket to the interface between cam carrier, cylinder head, cylinder block and low crankcase.

Width : 3.0 - 5.0 mm (0.11 - 0.20 in.)

Sealant : MS721 - 40AA or Consultation

Courtesy of KIA MOTORS AMERICA, INC.

After applying liquid sealant to the timing chain cover, assemble the cover within 5 minutes of applying the sealant.

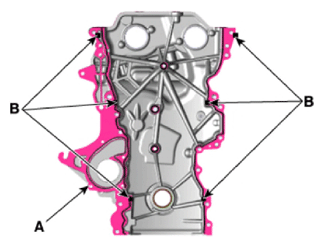

Bead width:

Whole section: 2.5 - 3.5 mm (0.10 - 0.14 in.)

Section A: 1.5 - 2.5 mm (0.06 - 1.0 in.)

Section B: 3.5 - 4.5 mm (0.14 - 0.18 in.)

Sealant:

Whole section: MS721 - 40 AA or AAO

Courtesy of KIA MOTORS AMERICA, INC.

Install the timing chain cover (A) relative to the dowel pin of the cylinder block and the hole in the timing chain cover.

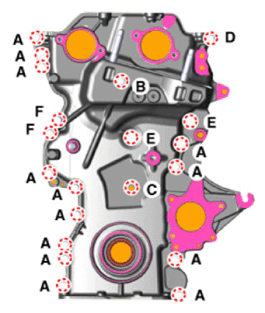

Tightening torque:

Bolts (A, B, C, D):

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Bolts (E, F):

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The engine running or pressure test should not be performed within 30 minutes after the timing chain cover was assembled.

Replace the front oil seal if necessary.
(Refer to Timing System - "FRONT OIL SEAL ")

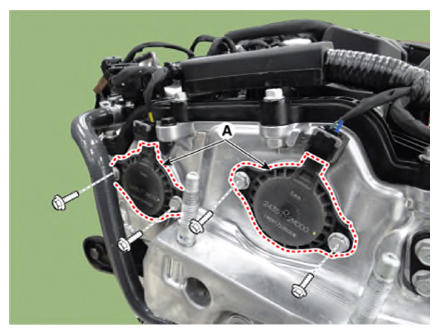

Install the variable force solenoid valve (VFS) (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not reuse the VFS if it has dropped the variable position solenoid valve.
- When installing the VFS (variable force solenoid valve), install it with attention to the following points.
1. Renew the VFS (variable Force Solenoid Valve) O-ring and apply engine oil to the new O-ring.
2. Tighten the VFS to the end of the timing chain mounting surface and attach the bolts.
3. Tighten the VFS to the specified torque.
Install the other parts reverse order of removal.
Fill with engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Fill with coolant.
(Refer to Cooling System - "COOLANT ")

NOTE: Refill the coolant according to the Integrated Flow Control Valve (ITM) coolant filling method.
