Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Be sure to read and follow the "GENERAL SAFETY INFORMATION & CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to shut off the high voltage before doing any work related with the high voltage system (Refer to "HIGH VOLTAGE SHUT-OFF PROCEDURES "). Failure to follow the safety instructions may result in serious electrical injuries.
  1. Install in the reverse order of removal.
  2. Refill the hybrid motor cooling system coolant and perform air bleeding by using the KDS.

    (Refer to Hybrid Motor Cooling System - "COOLANT ")

  3. Perform the resolver sensor calibration using the KDS.

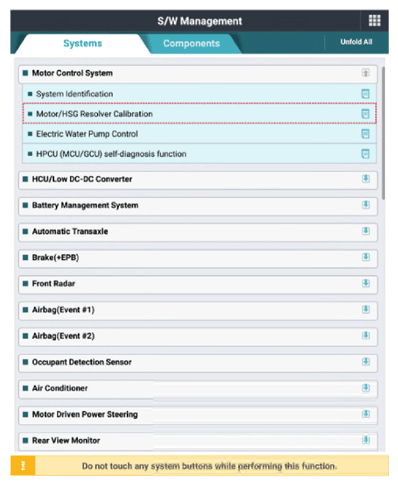

    G14959394Courtesy of KIA MOTORS AMERICA, INC.

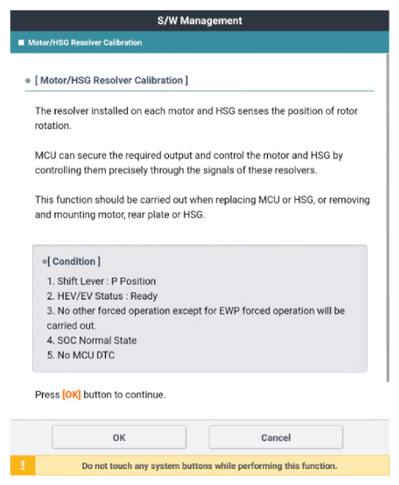

    G14959395Courtesy of KIA MOTORS AMERICA, INC.
  4. Perform the engine clutch fluid pressure calibration using the KDS.

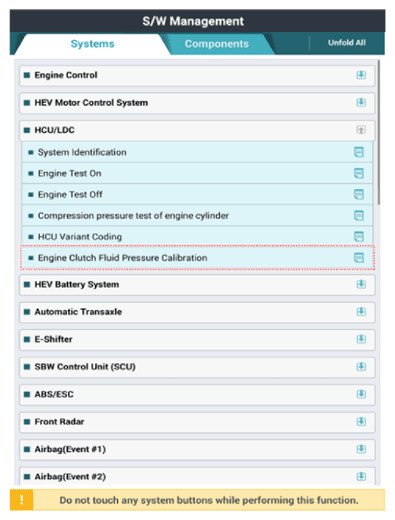

    G14959396Courtesy of KIA MOTORS AMERICA, INC.

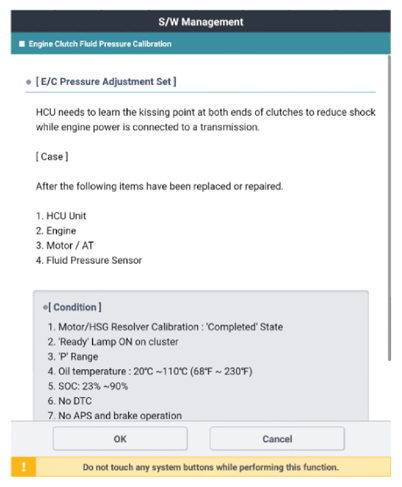

    G14959397Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the HCU variant coding using the KDS.

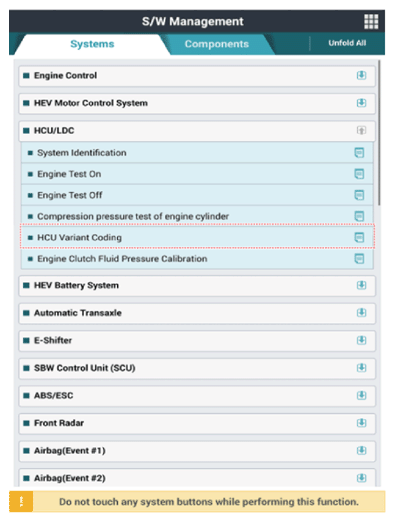

    G14959398Courtesy of KIA MOTORS AMERICA, INC.
