Section 175 (Hybrid Control System (PHEV))
>>
Hybrid Power Control Unit (HPCU)
>>
Components & Components Location
>>
Component
Components & Components Location: Component
WARNING:
This page is about a different variant/trim than selected.

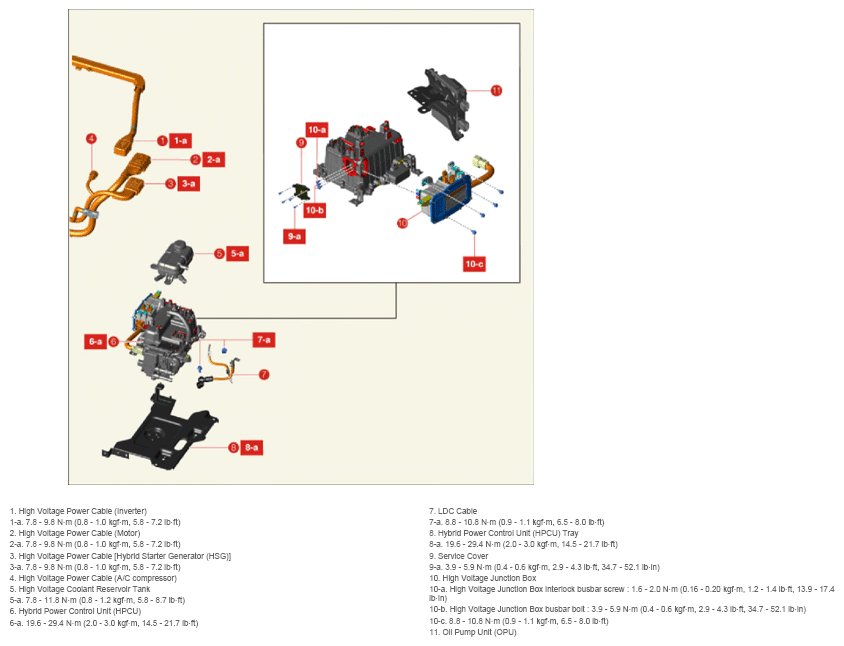

Fig 1: Hybrid Power Control Unit Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
