FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

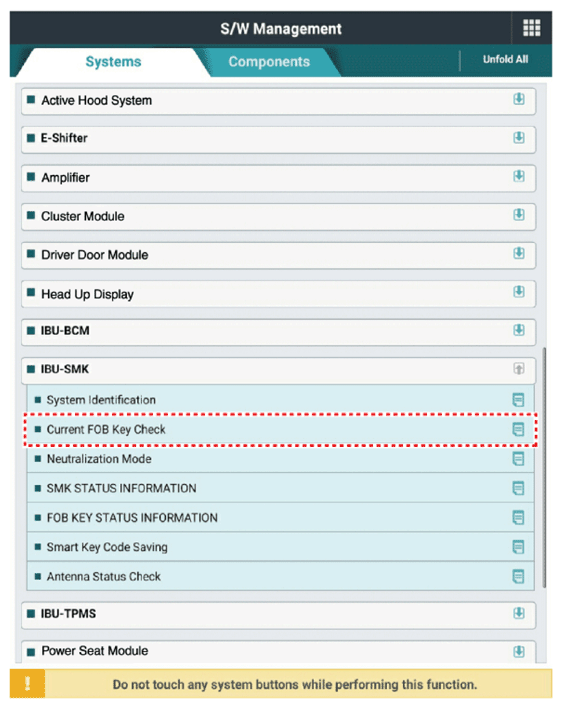

G13578783Courtesy of KIA MOTORS AMERICA, INC.

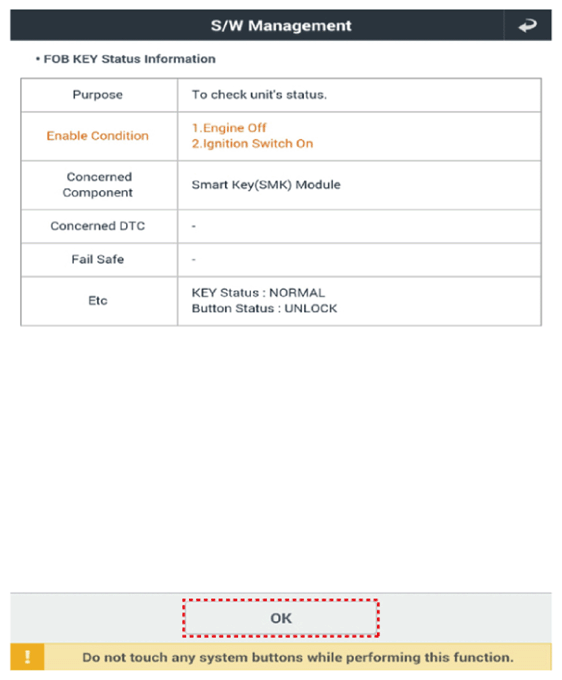

G13578784Courtesy of KIA MOTORS AMERICA, INC.

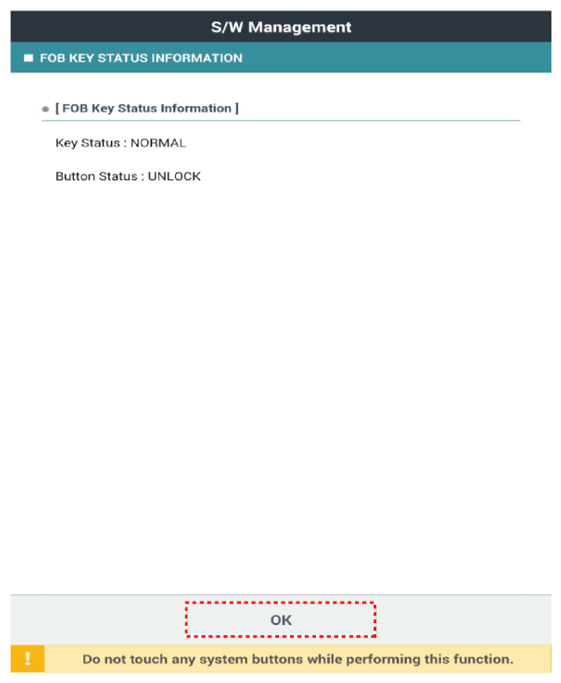

G13578785Courtesy of KIA MOTORS AMERICA, INC.
