Section 208 (Supplemental Restraint System Control Module (SRSCM) And Sensors (PHEV))
>>
SRC Control Module (SRSCM)
>>
Repair Procedures
>>
Variant coding
>>
Variant coding Procedure
Variant coding Procedure
WARNING:
This page is about a different variant/trim than selected.
On-Line on KDS
Switch "OFF" ignition, and connect KDS.
With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

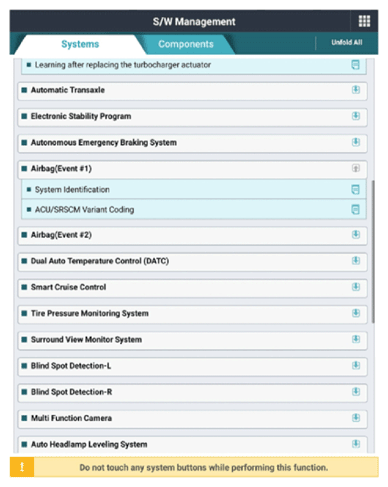

Select Variant coding mode.
Courtesy of KIA MOTORS AMERICA, INC.
Enter the VIN code.
Off-Line on KDS

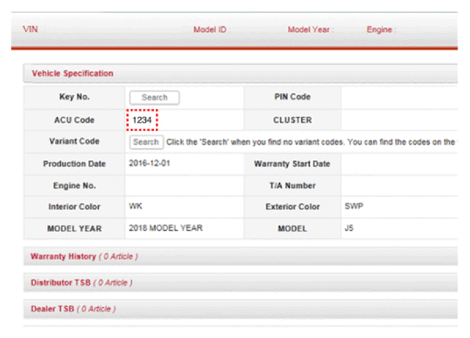

Confirm the ACU variant coding code from the KDS server after inputting the VIN to the KDS sever.
Courtesy of KIA MOTORS AMERICA, INC.
Switch "OFF" ignition, and connect KDS.
With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
Select variant coding mode.

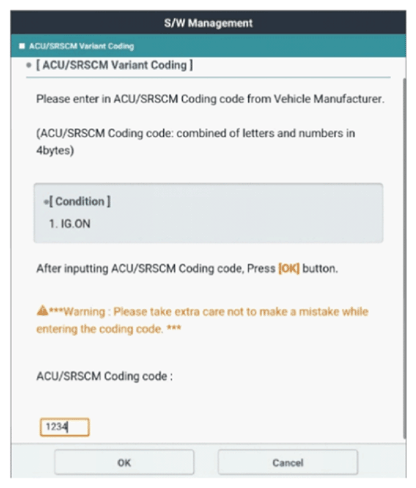

Input the ACU coding code.
Courtesy of KIA MOTORS AMERICA, INC.
