Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

    CAUTION: After disconnecting the cables, wait at least 3 minutes.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

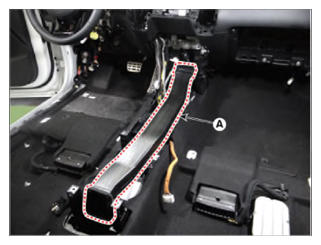

  3. Remove the rear air duct (A) by removing the mounting bolt.
    G14958257Courtesy of KIA MOTORS AMERICA, INC.

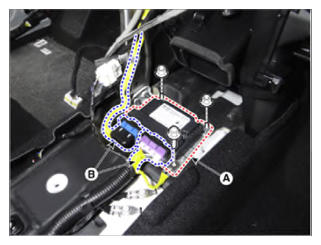

  4. Disconnect the connector (B) after pulling the lock lever and remove the airbag system control module (SRSCM) by removing the mounting bolt and nuts.

    Tightening torque:

    Bolt: 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 7.9 - 10.1 lbf.ft)

    Nut: 6.9 - 7.8 N.m (0.7 - 0.8 kgf.m, 5.0 - 5.7 lb.ft, 60.7 - 69.4 lb.in)

G14958258Courtesy of KIA MOTORS AMERICA, INC.
