Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

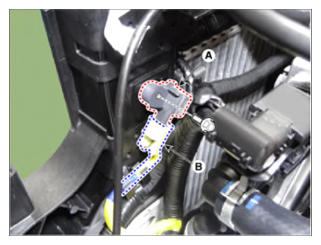

CAUTION: After disconnecting the cables, wait at least 3 minutes. - Remove the front impact sensor assembly (A) by removing the bolt after disconnecting the connector (B).
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)
[LH]
[RH]
