Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

CAUTION: After disconnecting the cables, wait at least 3 minutes.
Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

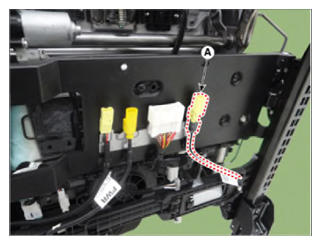

Remove the side airbag wiring (A) after removing the side airbag wiring clips.

Courtesy of KIA MOTORS AMERICA, INC.

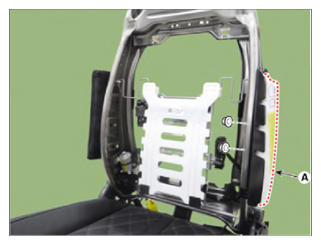

Remove the side airbag (A) by removing the nuts.
Tightening torque:

5.8 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.7 lb.ft, 52.0 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
