Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Install the VFS with the specified torque.
  • If VFS is dropped, it may cause internal damage. Do not use it.

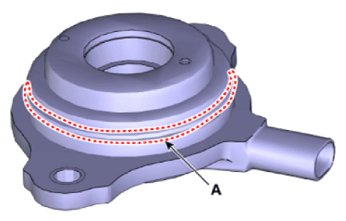

  • Apply engine oil on new O-ring (A).
G14957057Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
