Engine Coolant Temperature Sensor (ECTS) #2: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove the HSG.
(Refer to Hybrid Motor System - "HYBRID STARTER GENERATOR ")

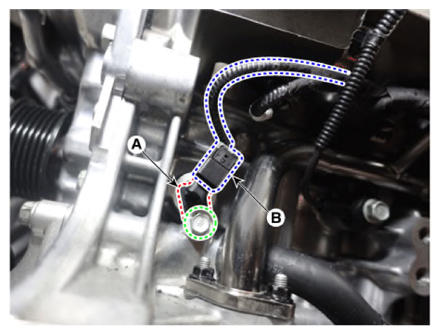

- Remove the ECTS #2 (A) by removing the mounting bolt after disconnecting the connector (B).
Tightening torque:
9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
