Repair Procedures: Inspection: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Install the component within the specified torque values.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

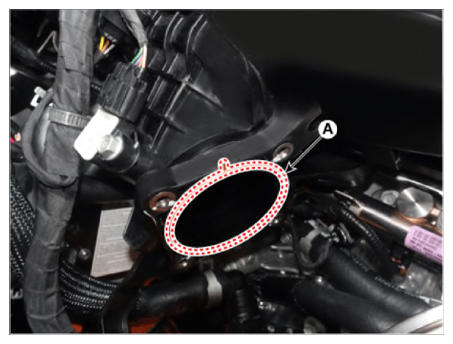

Check the installation condition of O-ring (A) before installing the ETC module.

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.

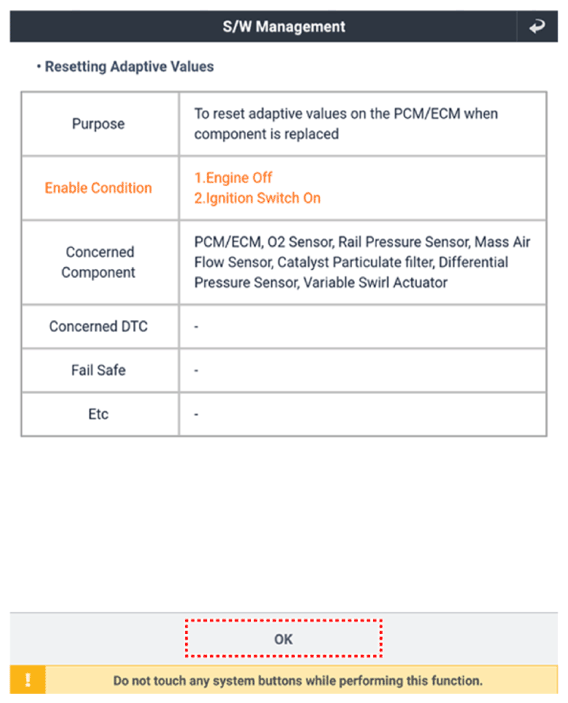

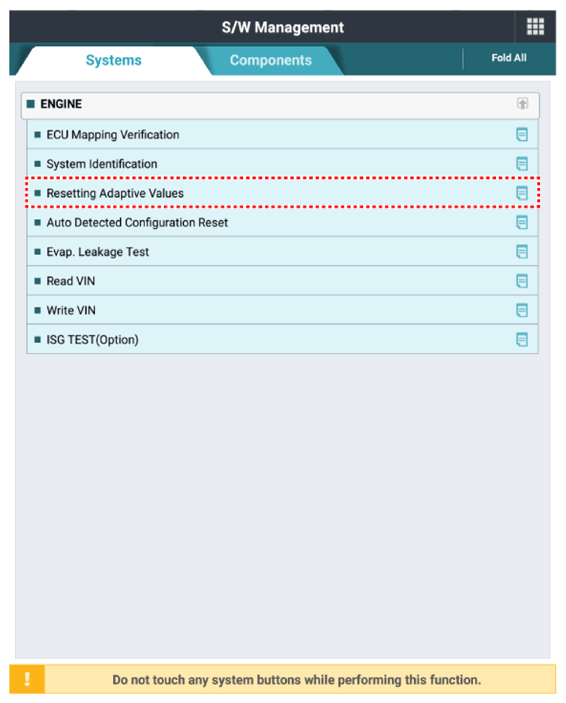

Reset the ECM adaptive values after replacing the ETC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the ETC learning procedure.
(Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
