Tailgate Open Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the tailgate lower trim.

    (Refer to Body - " TAILGATE TRIM  ")

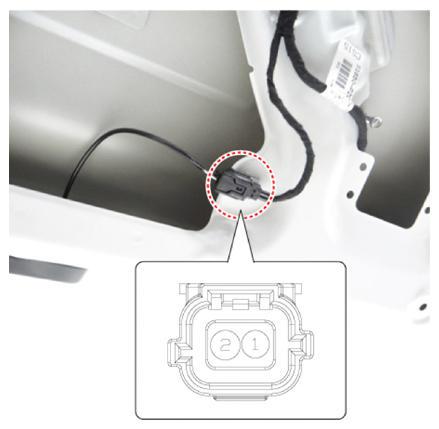

  3. Check for continuity between the terminals.
G13578754Courtesy of KIA MOTORS AMERICA, INC.
G13578755Courtesy of KIA MOTORS AMERICA, INC.
