Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Install in the reverse order of removal.
    NOTE:
    • When installing, place the wiper arm to the specified position and then tighten the nut.

    [Front Wiper]

    (Passenger Seat)

    • Place the wipers to the marking (A) position of cowl top cover.
    G13578809Courtesy of KIA MOTORS AMERICA, INC.

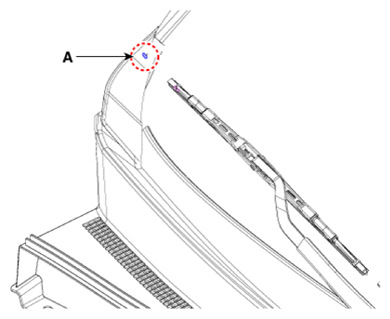

    (Driver's Seat)

    • Place the wipers to the marking (A) position of windshield glass.
    G13578810Courtesy of KIA MOTORS AMERICA, INC.

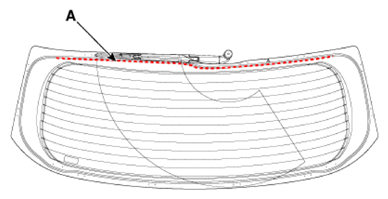

    [Rear Wiper]

    • Wiper blade to be lined up on marking (A).
    G13578811Courtesy of KIA MOTORS AMERICA, INC.
