Off-Line on KDS

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Confirm the ACU variant coding code from the KDS server after inputting the VIN to the KDS sever.

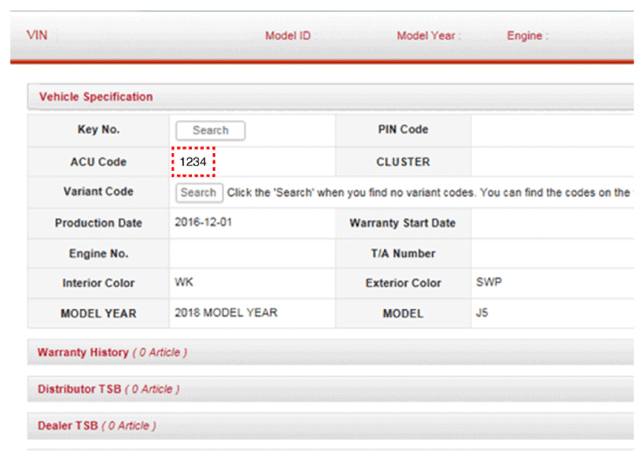

    G13577317Courtesy of KIA MOTORS AMERICA, INC.
  2. Switch "OFF" ignition, and connect KDS.
  3. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  4. Select Variant Coding mode.
  5. Input the ACU Coding code.

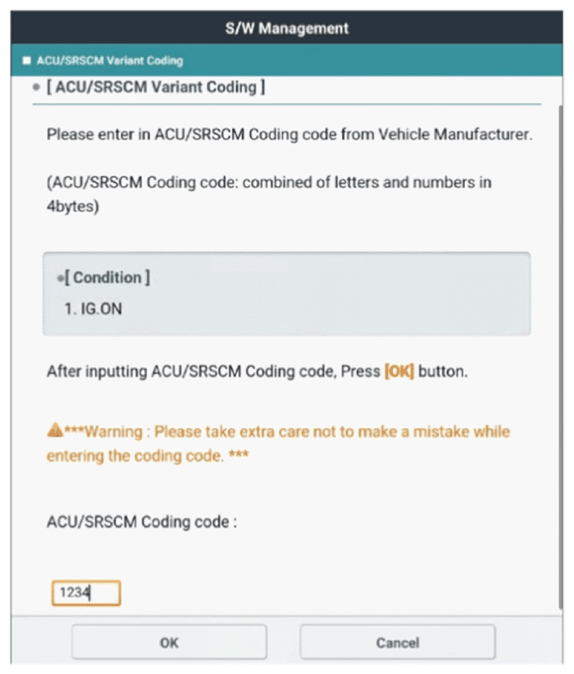

    G13577318Courtesy of KIA MOTORS AMERICA, INC.
