Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (7 Of 10) >> DTC P1932-00: Valve Duration Control Module EEPROM Internal Fault >> DTC Information >> Diagnostic Flow Chart

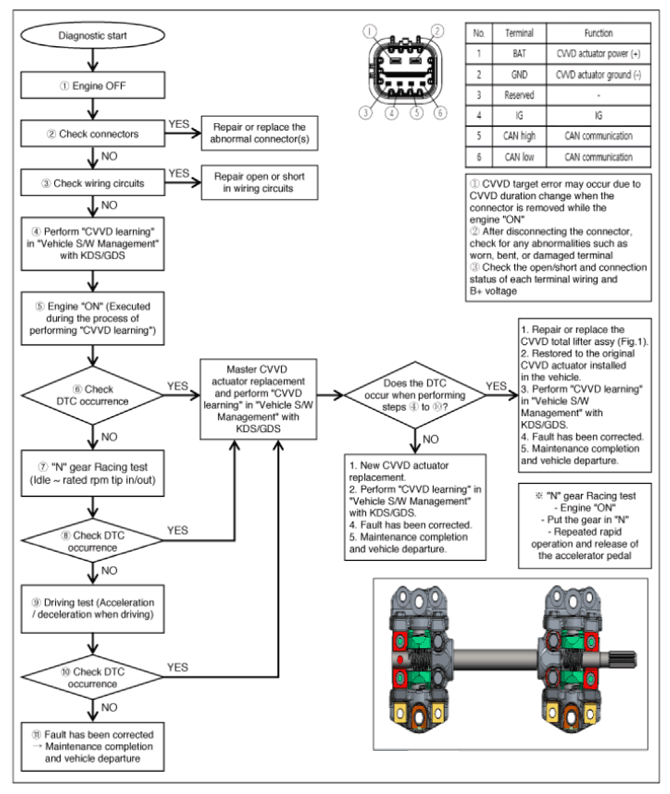

Diagnostic Flow Chart

G14943094Courtesy of KIA MOTORS AMERICA, INC.
