Transaxle Mounting Bracket

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - ENGINE ROOM UNDER COVER ")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

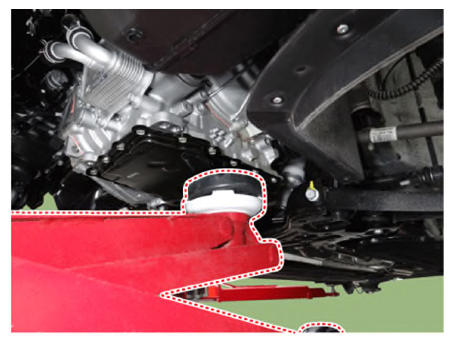

Install jack under the transaxle to support it.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put the rubber block between the jack and transaxle to avoid damaging the transaxle.

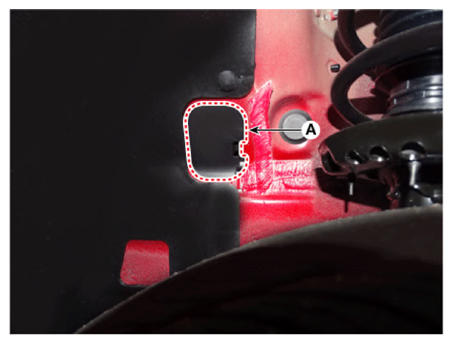

Remove the transaxle mounting side panel packing (A).

Courtesy of KIA MOTORS AMERICA, INC.

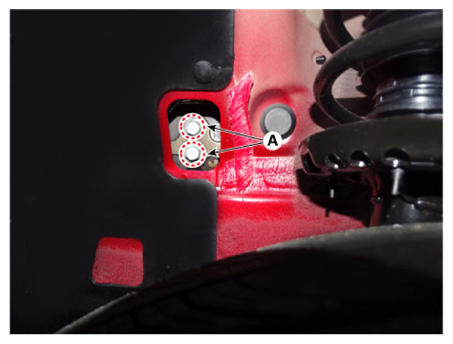

Remove the transaxle support bracket mounting bolts (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

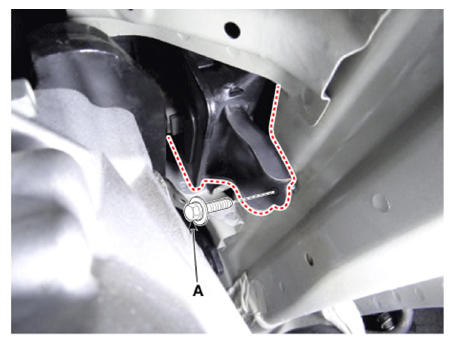

Remove the transaxle mounting bracket bolt (A). [IVT type]
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

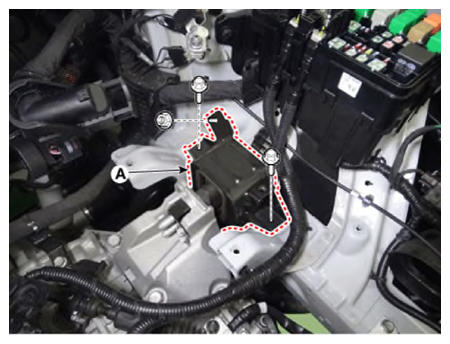

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
