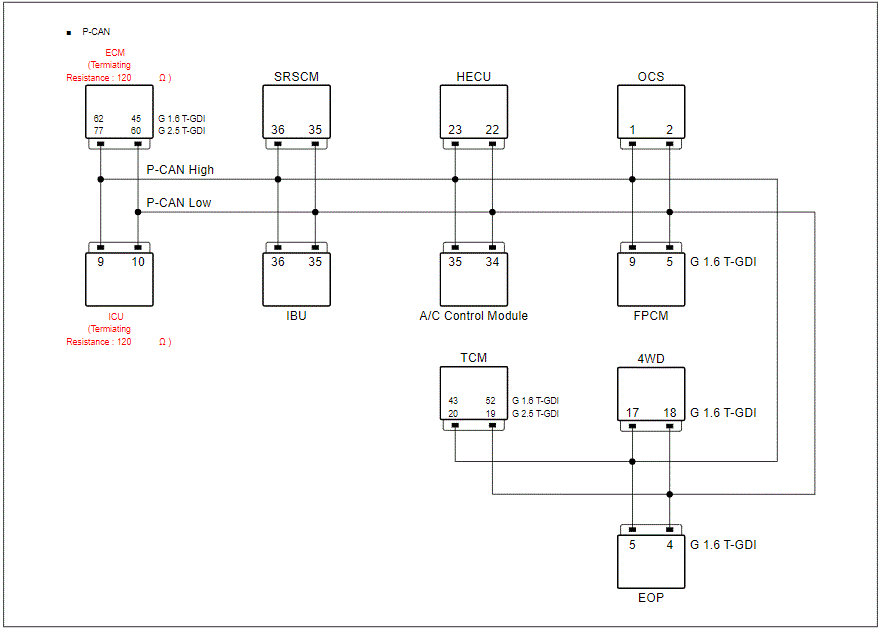

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

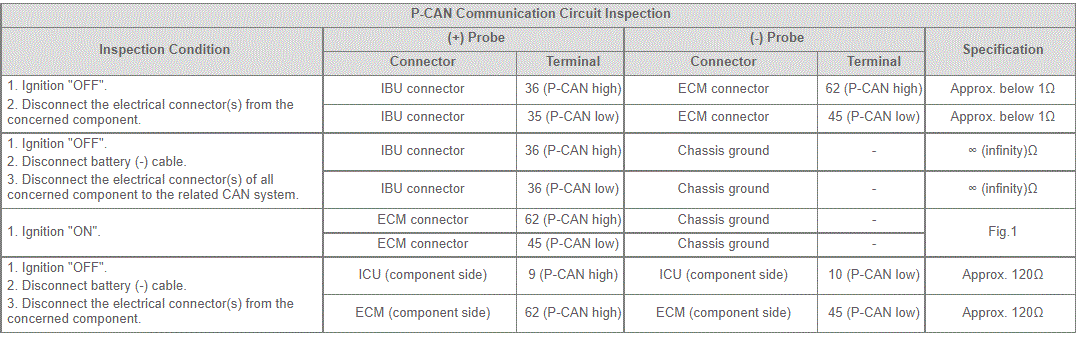

• Go to "Module Circuit Inspection" procedure.

No Good

• Repair as necessary and then Go to "Verification of Repair " procedure.

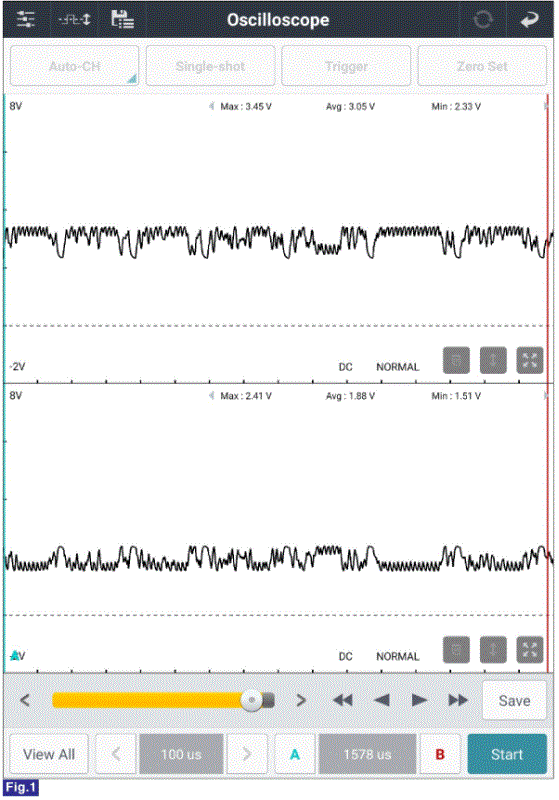

Courtesy of KIA MOTORS AMERICA, INC.

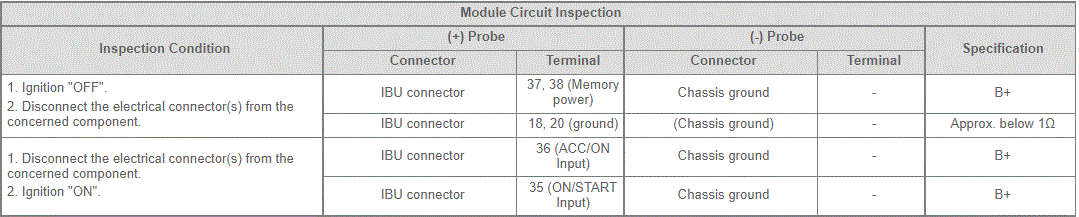

Good

• Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

• Repair as necessary and go to "Verification of Repair " procedure.
• If no problems were found with the circuits or connectors, replace the IBU and go to "Verification of Repair " procedure.
