Components And Components Location: Components

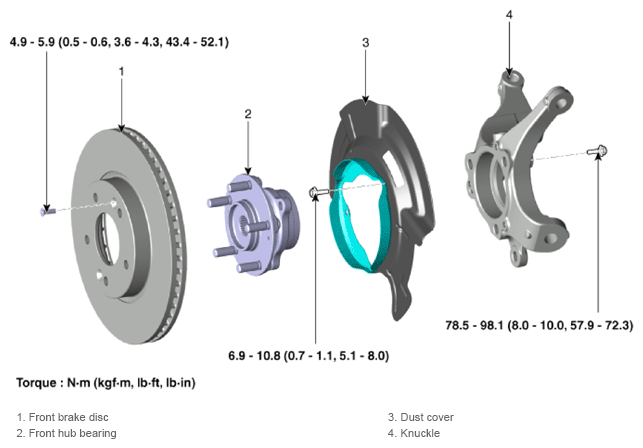

Fig 1: Front Axle Assembly Components Location With Torque Specification

G14561313

Courtesy of KIA MOTORS AMERICA, INC.
