Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

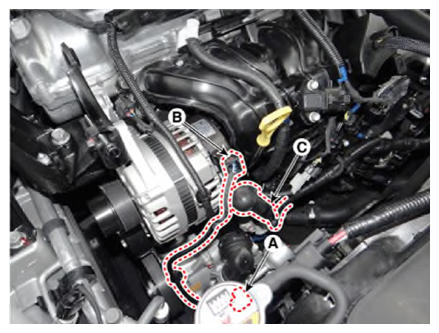

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).
Alternator "B" terminal mounting nut: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

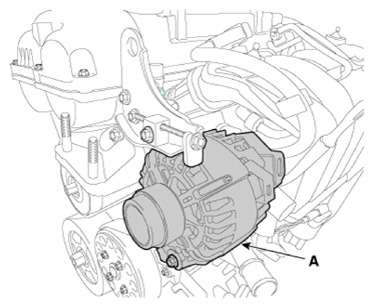

Remove the alternator (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
