Removal and Installation

  1. Disconnect the negative (-) battery terminal.

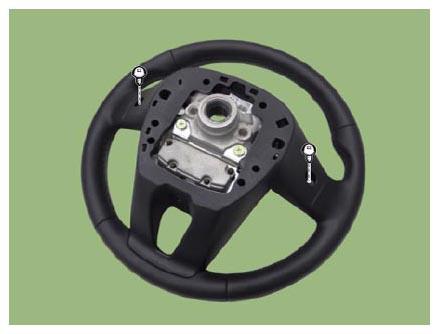

  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

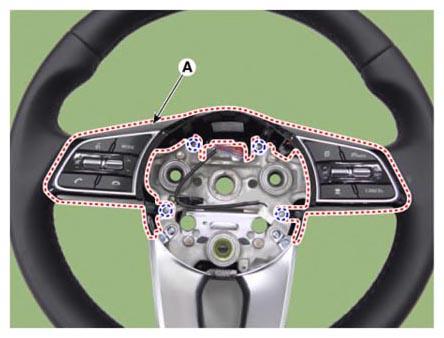

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.
    G14557782Courtesy of KIA MOTORS AMERICA, INC.
    G14557783Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) from steering wheel remote control.
    G14557784Courtesy of KIA MOTORS AMERICA, INC.

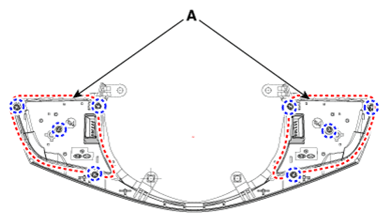

  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.
    G14557785Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
