Monitor KDS Data

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

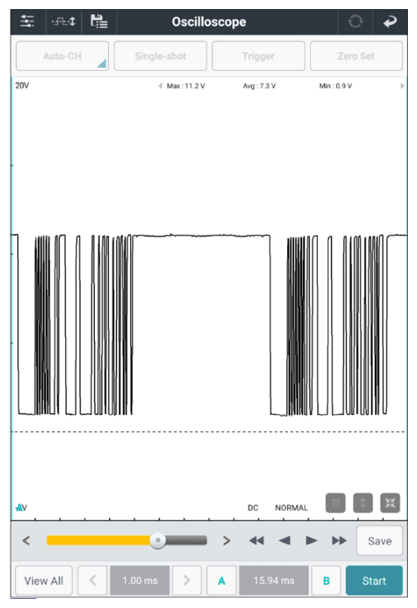

LIN oscilloscope (IBU)	Ignition "ON".	IBU connector	22 (IMMO K-Line)	Chassis ground	-	Fig.1

G14910319

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "SMK Status Information" procedure.

SMK Status Information
Inspection Condition	Inspection Condition	Reference

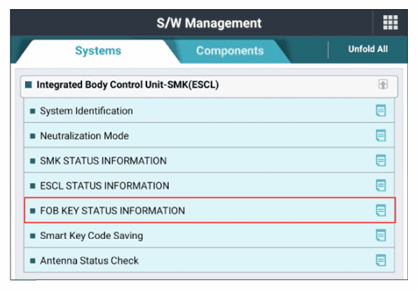

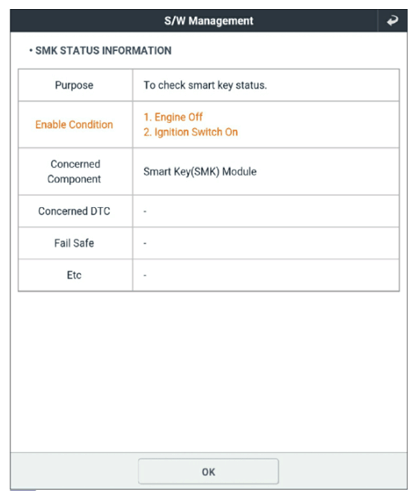

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)." Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 3

G14910320

Courtesy of KIA MOTORS AMERICA, INC.

G14910321

Courtesy of KIA MOTORS AMERICA, INC.

G14910322

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
