Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Charging voltage inspection (LDC) |
|

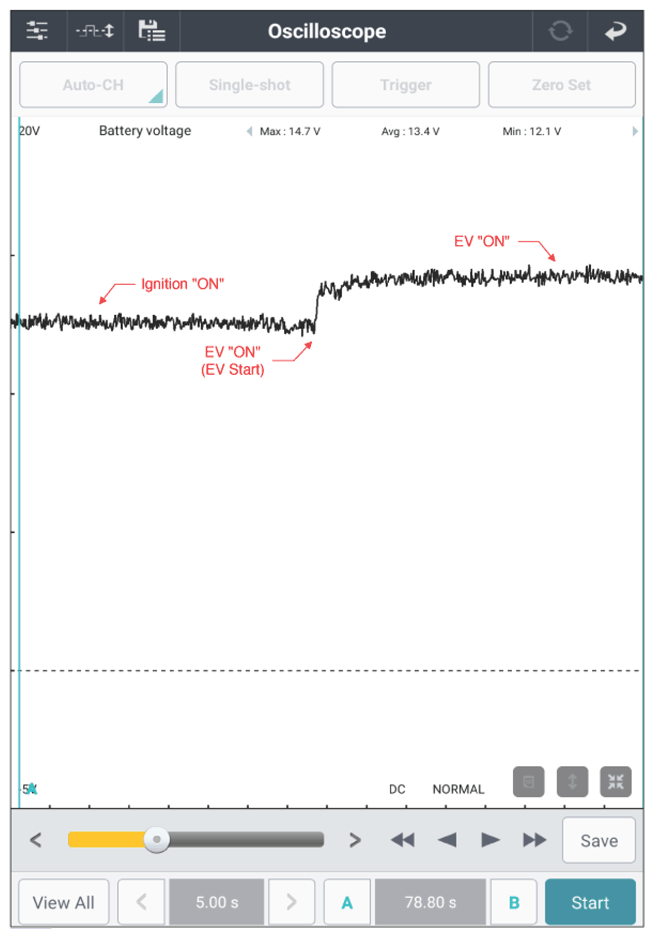

Auxiliary battery | (+) | Auxiliary battery | (-) | Fig.1 |
Good
- Go to "Module Inspection" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace LDC and then go to "Verification of Repair " procedure.
| Module Inspection | ||||||
|---|---|---|---|---|---|---|
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | |||
| Power inspection (VCU ↔ Chassis ground) |
|
VCU connector | 6, 51, 73 (Memory power) | Chassis ground | - | B+ |
| VCU connector | 67 (IG3 input) | Chassis ground | - | B+ | ||
| VCU connector | 87 (ON/START Input) | Chassis ground | - | B+ | ||
| Open in circuit inspection (VCU ↔ Chassis ground) |
|
VCU connector | 16, 31, 32 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Therefore check terminal of auxiliary battery, all connectors and connections for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
No Good
- Check the fuse condition.
- Repair as necessary and then go to "Verification of Repair " procedure.
- If no problems were found with the circuits or connectors, replace the PCB block and go to "Verification of Repair " procedure.
