Removal & Installation: Removal

1. Disconnect the battery negative (-) terminal and the service interlock connector.

   (Refer to REMOVAL & INSTALLATION - 2WD

   (Refer to REMOVAL & INSTALLATION - 4WD

2. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

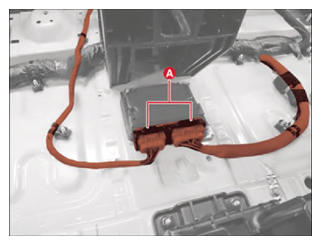

3. Disconnect the connector (A) by pulling the connector lock lever.

   Courtesy of KIA MOTORS AMERICA, INC.

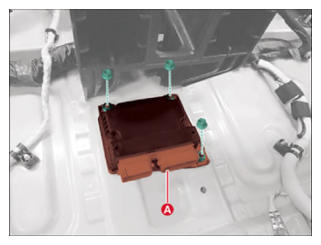

4. Remove the SRS Control Module (SRSCM) (A) after removing the nuts.

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
