Home >> Kia >> 2022 >> EV6 Light >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Electric Power Conversion System (Standard) >> Multi Inverter Assembly >> Components & Components Location >> Component

Components & Components Location: Component

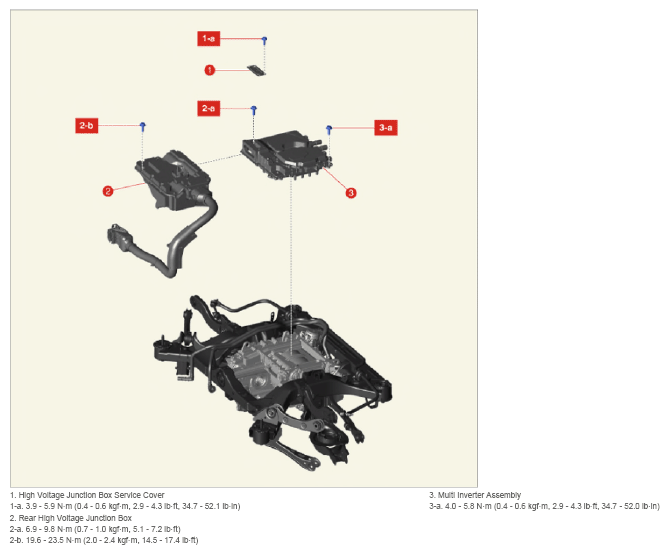

Fig 1: Multi Inverter Assembly Components Location With Torque Specification

G14862796

Courtesy of KIA MOTORS AMERICA, INC.
