Component Inspection

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1 to 4

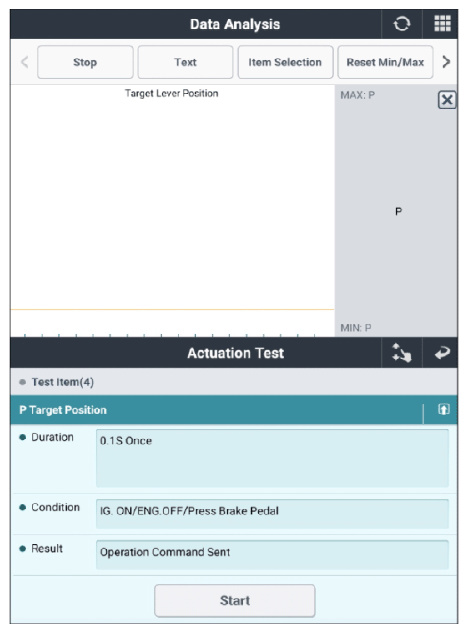

G14873752

Courtesy of KIA MOTORS AMERICA, INC.

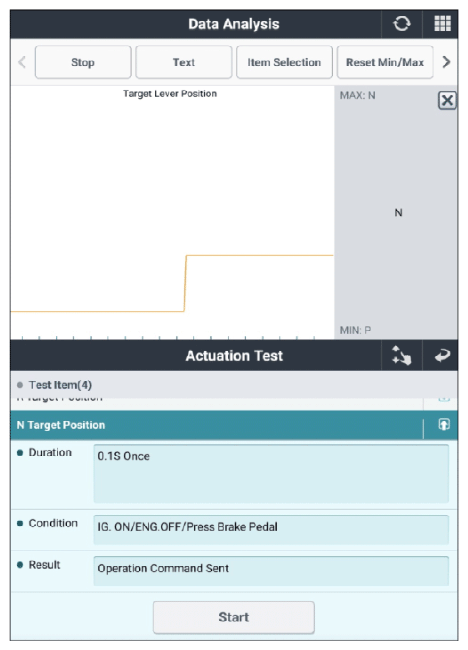

G14873753

Courtesy of KIA MOTORS AMERICA, INC.

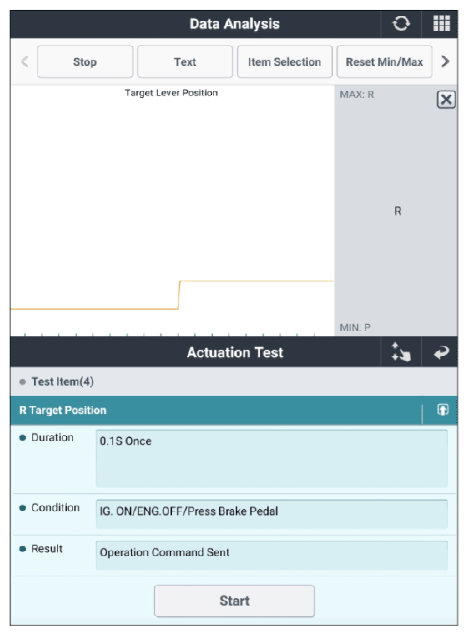

G14873754

Courtesy of KIA MOTORS AMERICA, INC.

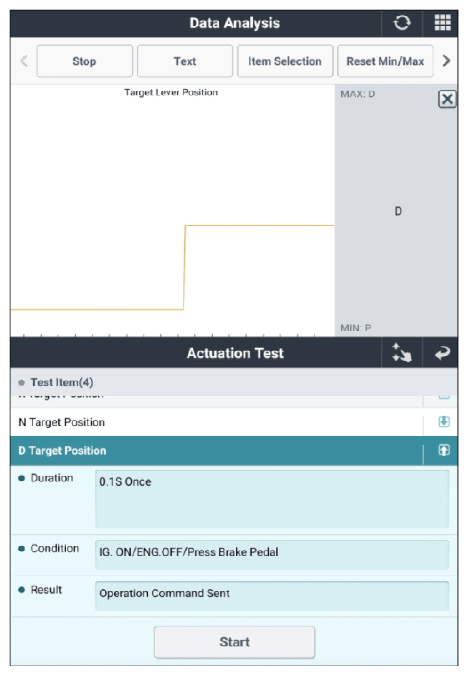

G14873755

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Check SBW actuator motor assembly for failure. (motor connection shaft, gear break, etc.)
If no problems were found with the circuits or connectors, replace the SBW actuator and go to "Verification of Repair " procedure.
