Home >> Kia >> 2022 >> EV6 First Edition >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Motor And Reduction Gear Control System >> SBW (Shift By Wire) Control Unit >> Components & Components Location >> Component

Components & Components Location: Component

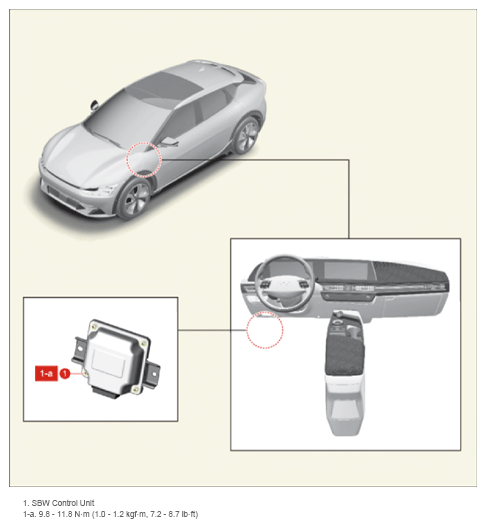

Fig 1: SBW (Shift By Wire) Control Unit Components Location With Torque Specification

G14863565

Courtesy of KIA MOTORS AMERICA, INC.
