Service Point Target Auto Calibration (SPTAC) Procedure

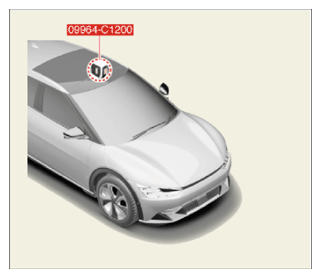

Install the SCC setting beam (09964 - C1200) on the roof center above the vehicle's front windshield (same for both short and long distance calibrations).

Courtesy of KIA MOTORS AMERICA, INC.

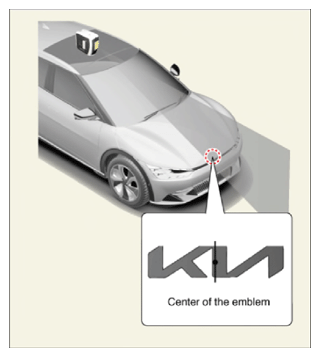

Make the laser illuminate starting from the roof center line and passing through the center of the emblem.

Courtesy of KIA MOTORS AMERICA, INC.

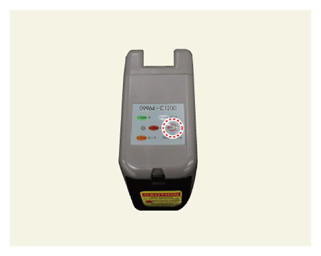

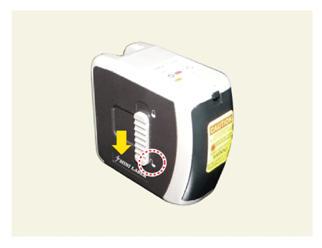

IMPORTANT: The SCC setting beam (09964 - C1200) must be set to 'ON' and the holding (locking) function is not used.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

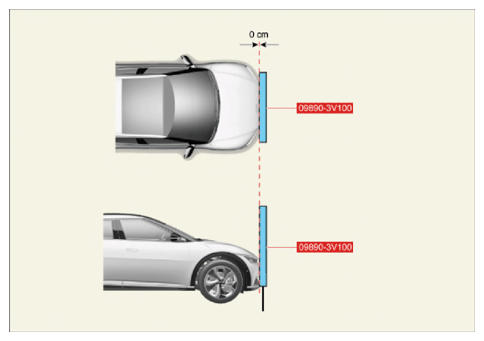

Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 0 cm (0 in) from the bumper. [Max. tolerance: 10 cm (4 in)]

Courtesy of KIA MOTORS AMERICA, INC.

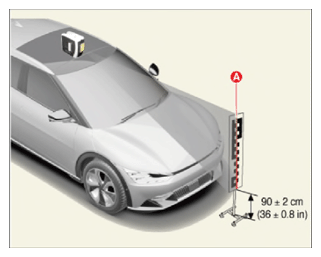

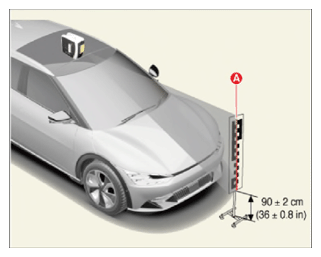

Set the front view camera calibration target (09890 - 3V100) height to 90 ±2 cm (36 ±0.8 in) from the ground and align the center of calibration target with center line (A) oflaser beam.

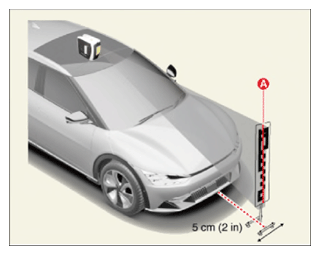

It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Max. tolerance: 5cm (2 in)]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

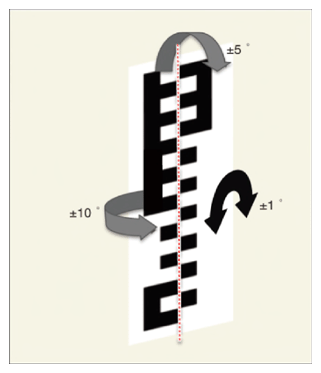

- Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
- The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1°).
  The left and right tilt tolerance (±1°) is very important and is sensitively affected by the flatness of the floor.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

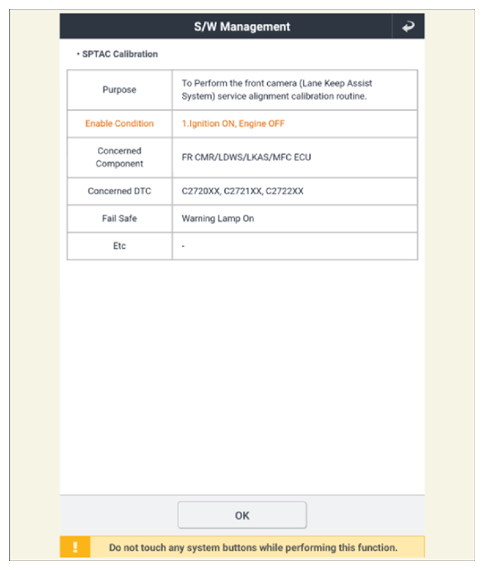

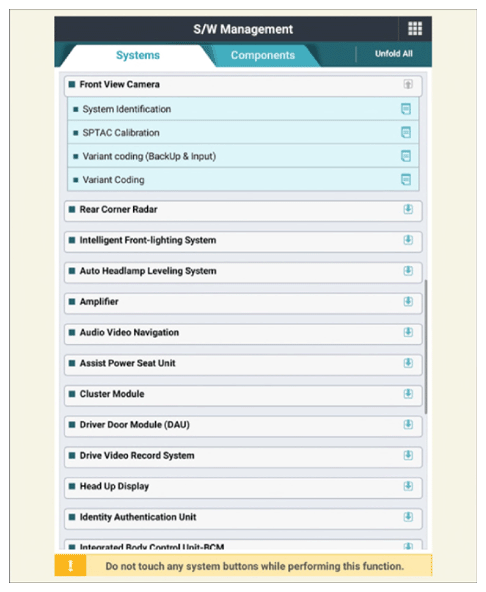

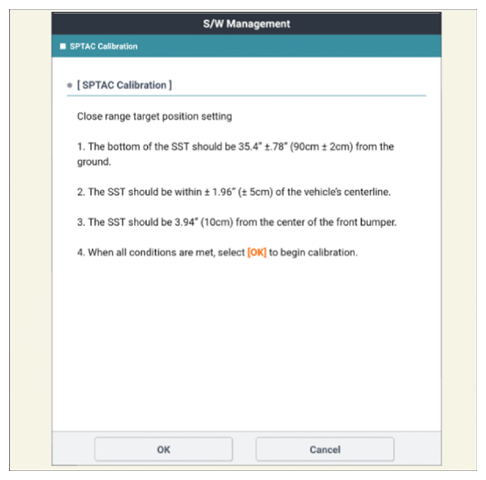

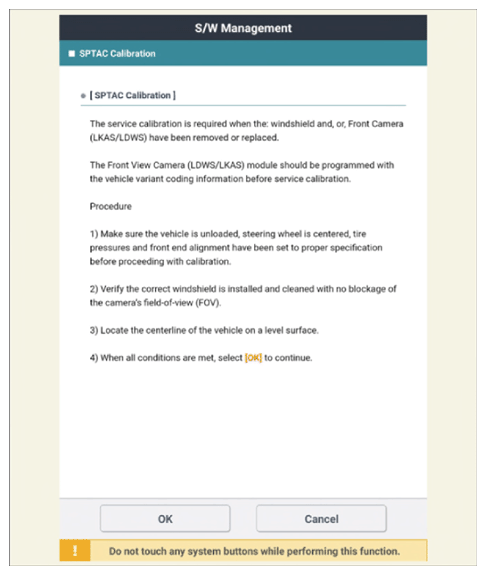

Perform the "SPTAC (Service Point Target Auto Calibration)" using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

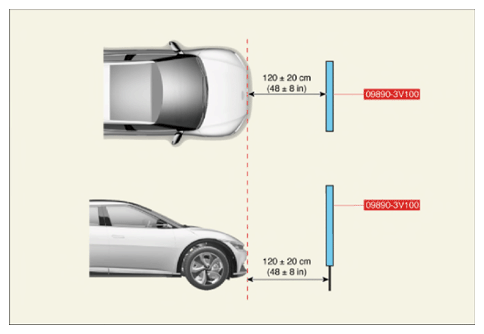

Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 120 cm (48 in) from the bumper. [Max. tolerance: 20 cm (8 in)]

Courtesy of KIA MOTORS AMERICA, INC.
Set the front view camera calibration target (09890 - 3V100) height to 90 ± 2 cm (36 ± 0.4 in) from the ground and align the center of calibration target with center line (A) of laser beam.
It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Max. tolerance: 5cm (2 in)]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
- The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1 °).
  The left and right tilt tolerance (±1 °) is very important and is sensitively affected by the flatness of the floor.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the "SPTAC (Service Point Target Auto Calibration)" using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Check the DTC and warning lamp after erasing the DTC using the KDS.
