Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

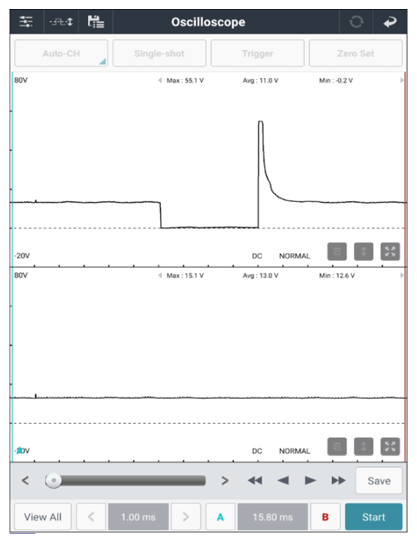

Injector (GDI) connector | 2 (high) | Chassis ground | - | Fig. 1 |
| Injector (GDI) connector | 1 (low) | Chassis ground | - | ||
|

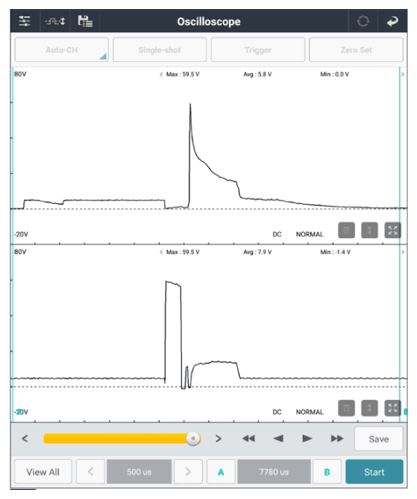

Injector (MPI) connector | 2 (control) | Chassis ground | - | Fig. 2 |
| Injector (MPI) connector | 1 (power) | Chassis ground | - | ||
Good
- Go to "SYSTEM INSPECTION " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the injector and Go to "VERIFICATION OF REPAIR " procedure.
In case of replacing the component, perform following "Resetting Adaptive Values" procedure.
