Visual Inspection

1. Check the air cleaner for blockage or wetness.
2. Check the intake air system for leakage.

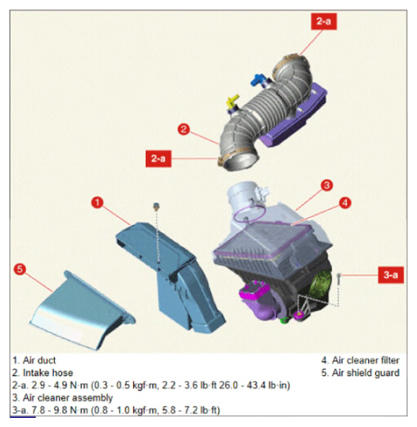

Fig 1: Air Cleaner Components With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Air Cleaner Components With Torque Specifications (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "WIRING INSPECTION " procedure.

No Good

• Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
