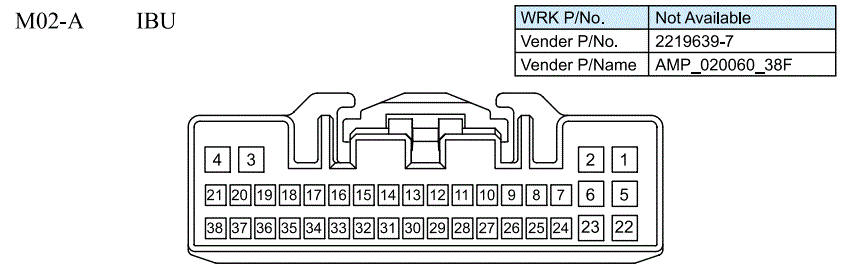

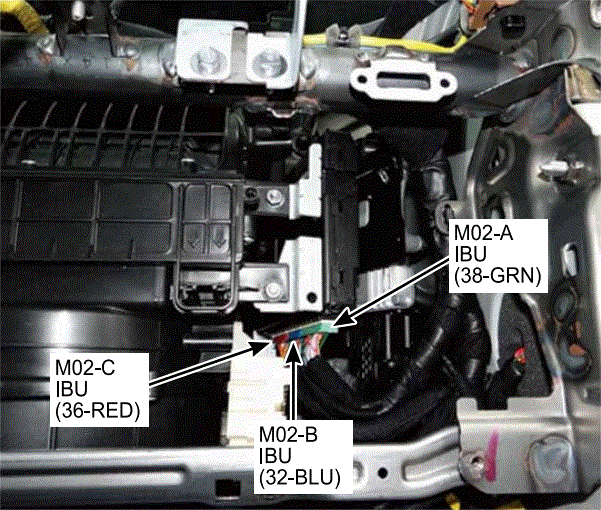

M02-A Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

1	-	-
2	-	-
3	B	Power Ground (GM06)
4	Br	PDW-R Power Out: Parking Distance Warning-Reverse LH/RH, Parking Distance Warning-Reverse LH/RH (Center)
5	-	-
6	G/O	Washer Motor, Multifunction Switch (Rear Washer Motor Switch),
7	Y	Rear Occupant Detection Sensor (LIN)
8	Gr	P-CAN (Low)
9	W	P-CAN (High)
10	-	-
11	L	B-CAN (Low)
12	R	B-CAN (High)
13	Y/O	Start/Stop Button (SSB SW2)
14	Gr/B	Driver Smart Key Outside Handle (Door Lock/Unlock Switch)
15	O	ATM Shift Lever Switch ('P' Position Switch)
16	P	Multifunction Switch (Fog Lamp Switch Signal)
17	Y	Multifunction Switch (Light Switch Signal)
18	G	Multifunction Switch (INT./VOL Switch Signal)
19	Gr	Multifunction Switch (GND)
20	G	Passenger Power Outside Mirror (Outside Mirror (C), Unfolding Motor)
21	L/O	Passenger Power Outside Mirror (Outside Mirror (HOR))
22	Br	Multifunction Switch (Front Washer Motor Switch), Washer Motor
23	O	Multifunction Switch (Front Wiper Low Back-Up Signal)
24	P	LIN_PDW : Parking Distance Warning - Forward/Reverse LH/RH, Parking Distance Warning - Forward/Reverse LH/RH (Center)
25	R	LIN (Safety ECU) : Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module LH/RH
26	L	Rain Sensor (LIN)
27	P	PDW-F/R Power : ICU Junction Block (Fuse - MODULE 5)
28	W	ECM (Vehicle Speed Sensor Output)
29	G	Start/Stop Button (SSB SW1)
30	-	-
31	Br	Passenger Smart Key Outside Handle (Door Lock/Unlock Switch)
32	L	Electric Parking Brake Switch (PDW-F/R Switch Signal)
33	R	Front Sunroof Controller (Sunroof Open Switch In)
34	R	Multifunction Switch (Head Lamp High Switch Output)
35	P/B	Multifunction Switch (Front Wiper Switch Output)
36	G/O	Multifunction Switch (Rear Wiper Switch Signal)
37	Y	Passenger Power Outside Mirror (Folding Motor)
38	P/B	Passenger Power Outside Mirror (Outside Mirror (VER))
