Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

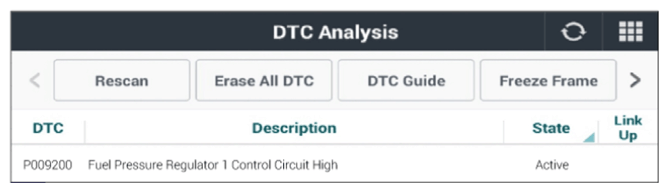

 Figure 1 below
G13333624Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
