Repair Procedures: Removal

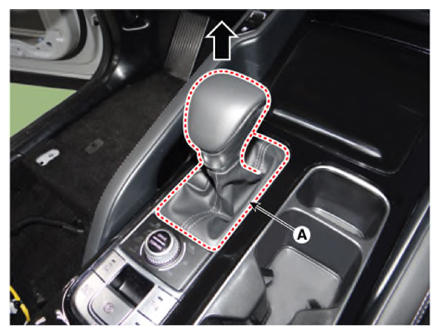

  1. After separating the boots from the console upper cover, remove the knob (A) by pulling it in the direction of arrow.
    G13313049Courtesy of KIA MOTORS AMERICA, INC.

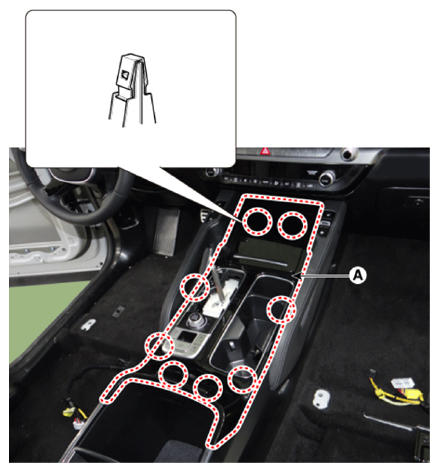

  2. Remove the console upper cover (A).
    G13313050Courtesy of KIA MOTORS AMERICA, INC.

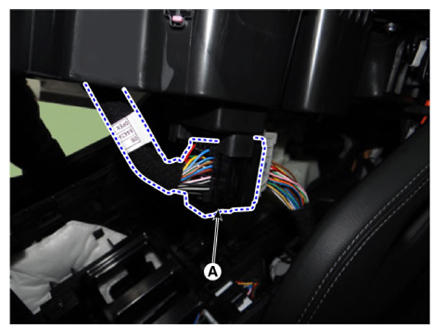

  3. Disconnect the main connector (A) from the console upper cover.
    G13313051Courtesy of KIA MOTORS AMERICA, INC.

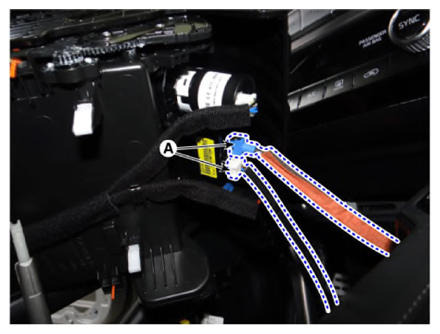

  4. Disconnect the multimedia jack connectors (A).
    G13313052Courtesy of KIA MOTORS AMERICA, INC.

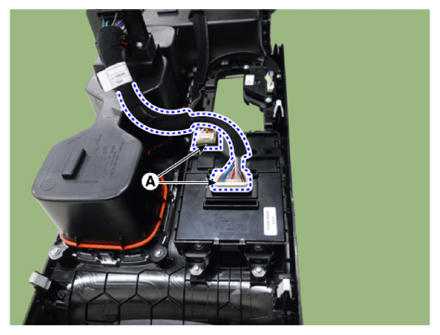

  5. Disconnect the connectors (A) from the floor console switch.
    G13313053Courtesy of KIA MOTORS AMERICA, INC.

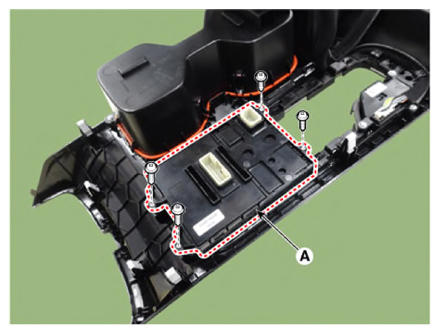

  6. Remove the floor console switch (A) after loosening the mounting screws.
    G13313054Courtesy of KIA MOTORS AMERICA, INC.
