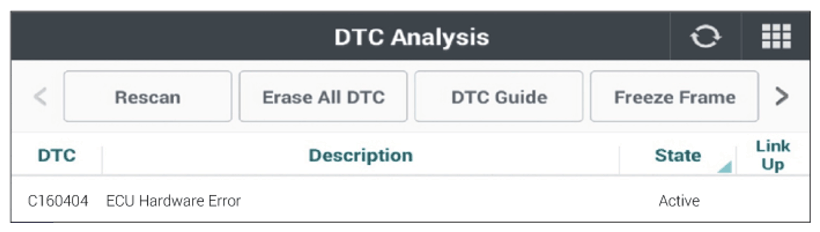

Monitor DTC Status

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

• Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
• Repair or replace as necessary and then go to "System Inspection " procedure below.
• If the DTC is erased, check for proper operation. If problem is corrected, replace SCC/FCA and then go to "System Inspection " procedure below.

* In a case of replacing SCC/FCA module, require to set the "Variant Coding" by KDS.

History/Pending Fault

• Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
• Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
