Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

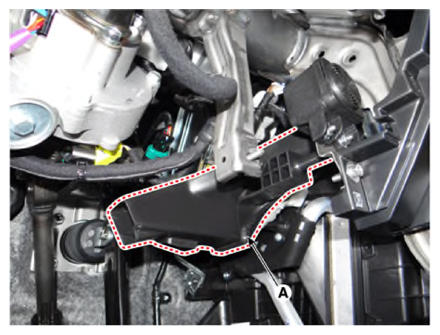

  3. Remove the shower duct (A) after loosening the mounting screw.
    G13313043Courtesy of KIA MOTORS AMERICA, INC.

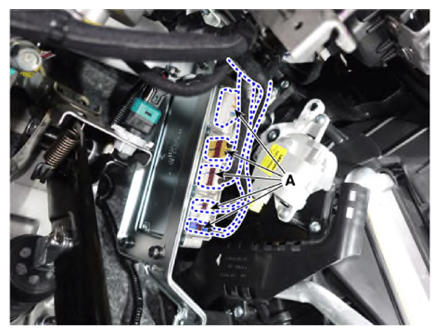

  4. Disconnect the connectors (A) from the SVM unit.
    G13313044Courtesy of KIA MOTORS AMERICA, INC.

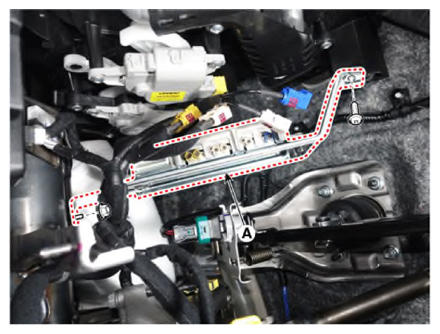

  5. Remove the SVM unit (A) after loosening the mounting screw and nut.
    G13313045Courtesy of KIA MOTORS AMERICA, INC.
