Connector and Terminal function

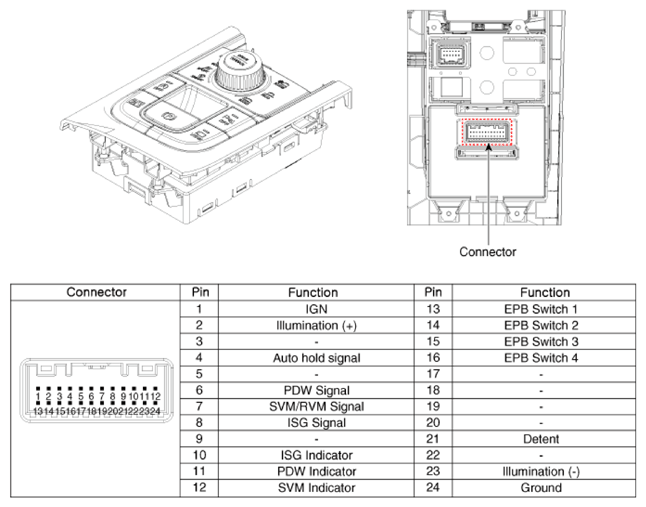

Fig 1: Surround View Monitor (SVM) Switch Connector End View And Terminal Description

G13313047

Courtesy of KIA MOTORS AMERICA, INC.
