Side View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the outside rear view mirror.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

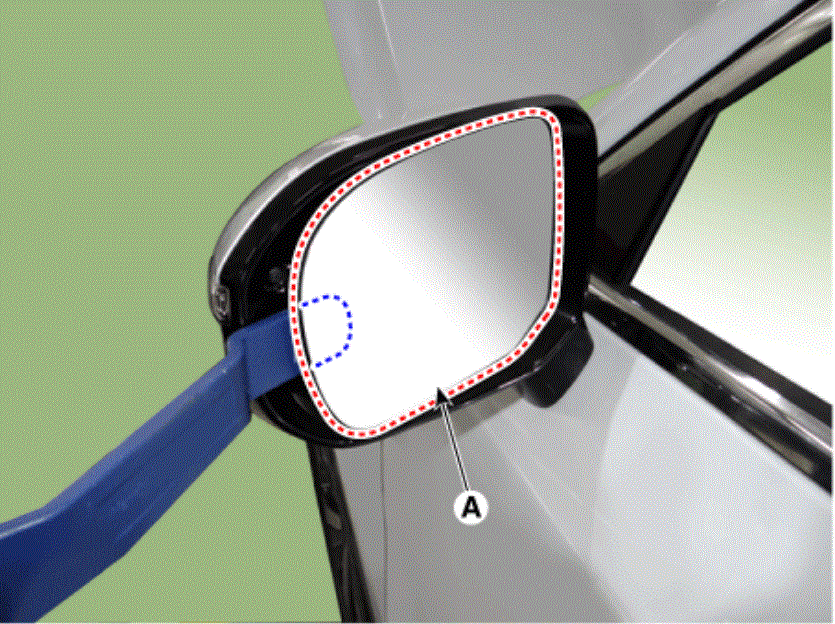

  3. After inserting the flat-head screwdriver or remover as shown in the illustration below, remove the mirror (A) by applying a momentary force.
    G00612185Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Wrap the tool with protective tape or cloth to prevent damage to the parts.
    • Do not insert the tool too deeply.

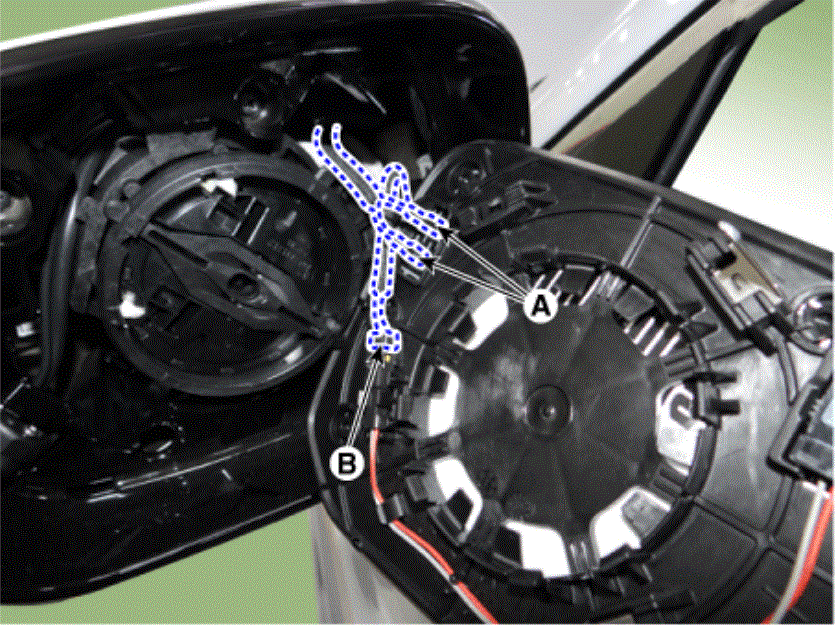

  4. Disconnect the heater connectors (A) and rear corner radar indicator connector (B).
    G00612186Courtesy of KIA MOTORS AMERICA, INC.

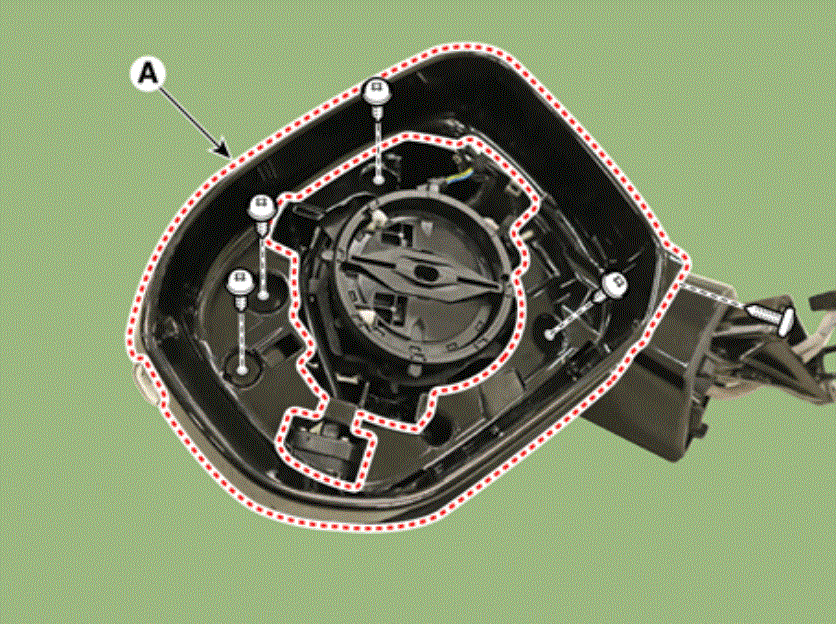

  5. Remove the housing cover after removing the mounting screws.
    G00612187Courtesy of KIA MOTORS AMERICA, INC.

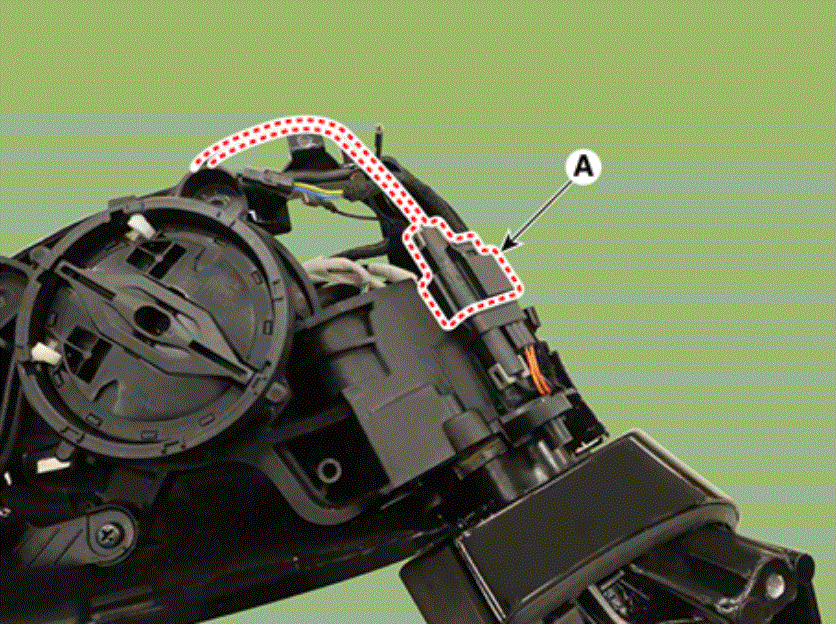

  6. Disconnect the Side view camera connector (A).
    G00612188Courtesy of KIA MOTORS AMERICA, INC.

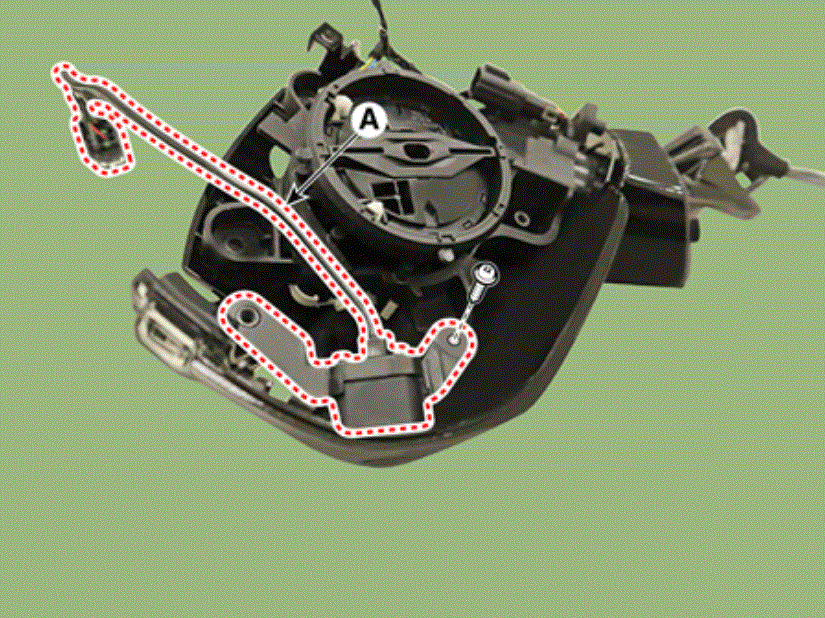

  7. Remove the Side view camera after removing the mounting screws.
    G00612189Courtesy of KIA MOTORS AMERICA, INC.
