Front View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

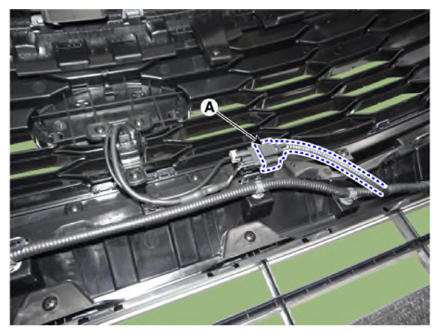

  3. Disconnect the connector (A) from the front view camera.
    G13313062Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front view camera (A) after loosening the mounting screws.
    G13313063Courtesy of KIA MOTORS AMERICA, INC.
