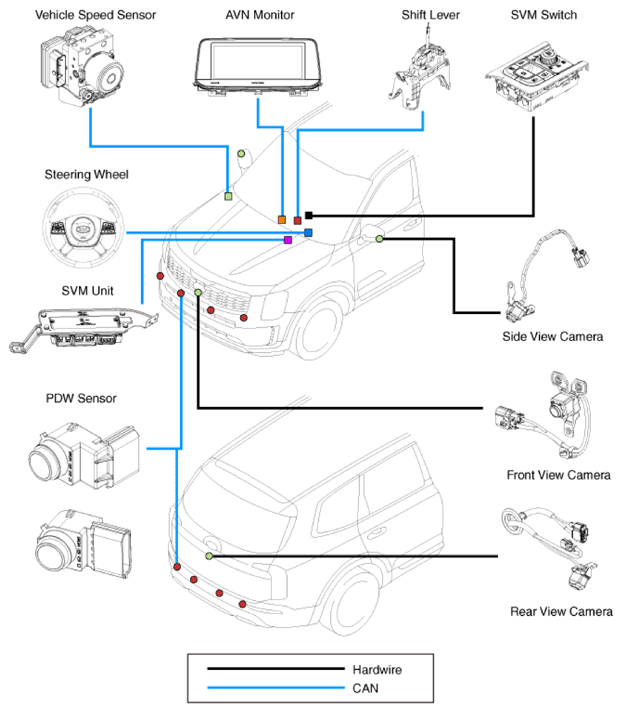

Component Location: Notes
Information
CAUTION:
- SVM unit basically transmits data via C-CAN only.
- Steering wheel angle sensor: C-CAN
- Vehicle speed sensor: C-CAN
- It functions as a CGW (Central gateway) of C-CAN ↔ B-CAN, P-CAN, MM-CAN in cluster.
e.g. The signal of unit using B-CAN, P-CAN, MM-CAN is transmitted after converting to C-CAN in cluster.
- SVN monitor: MM-CAN
- Transmission: P-CAN (TCU)
- PDW sensor: B-CAN (IBU)
