Front Radar System: Troubleshooting

When a alignment failed DTC occurs, follow the troubleshooting flowchart below.

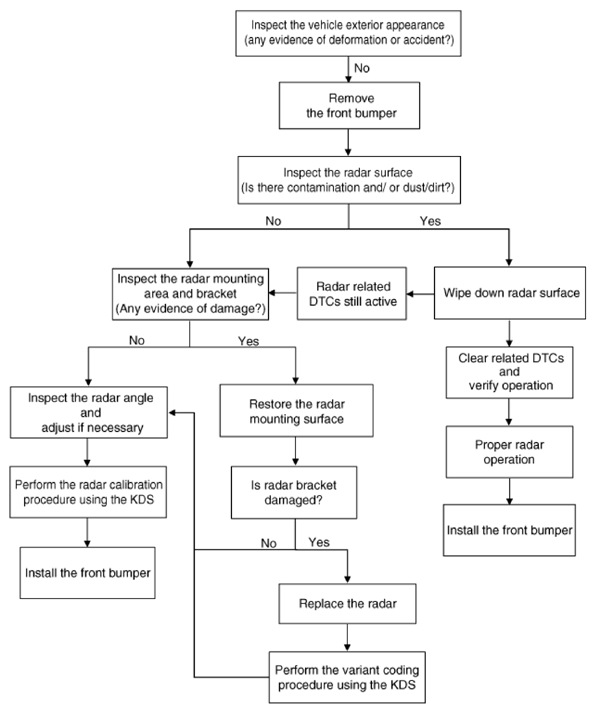

If there is no evidence of deformation or accident

Courtesy of KIA MOTORS AMERICA, INC.

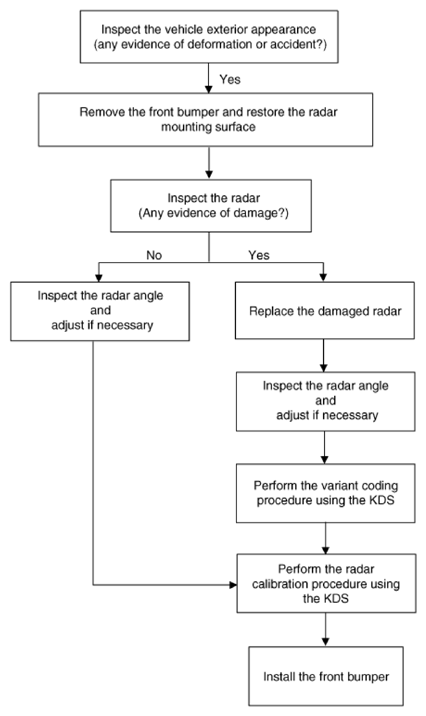

If there is any evidence of deformation or accident

Courtesy of KIA MOTORS AMERICA, INC.
