Repair Procedures: Inspection

  1. Check for resistance between terminals in each switch position.

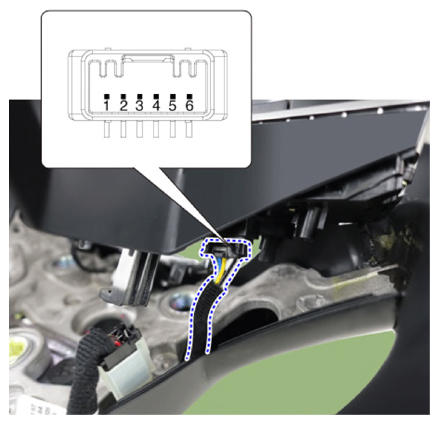

    G13312922Courtesy of KIA MOTORS AMERICA, INC.
    Switch Connector terminal Resistance (±3%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    SCC (Following distance control) 3.63 kΩ
    Trip group 1-6 390 Ω
    Trip up 610 Ω
    Trip down 910 Ω
    Trip OK/Reset 1.38 kΩ
