Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

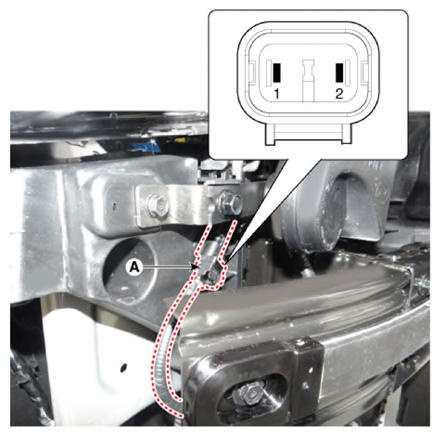

  2. Disconnect the hood switch connector (A).
    G13428320Courtesy of KIA MOTORS AMERICA, INC.

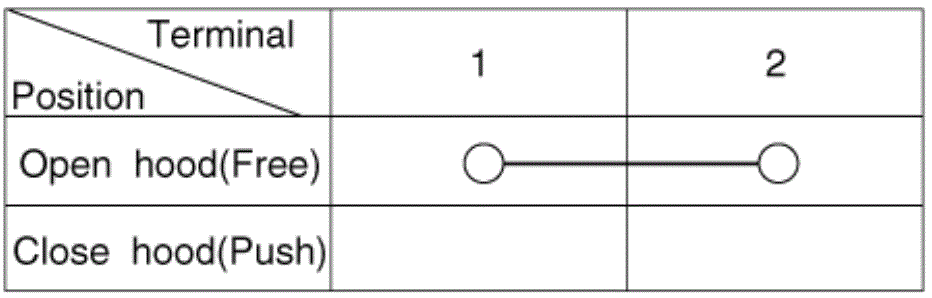

  3. Check for continuity between the terminals and ground as shown below.

    (Refer to Body - "HOOD LATCH ")

    G13428321Courtesy of KIA MOTORS AMERICA, INC.
