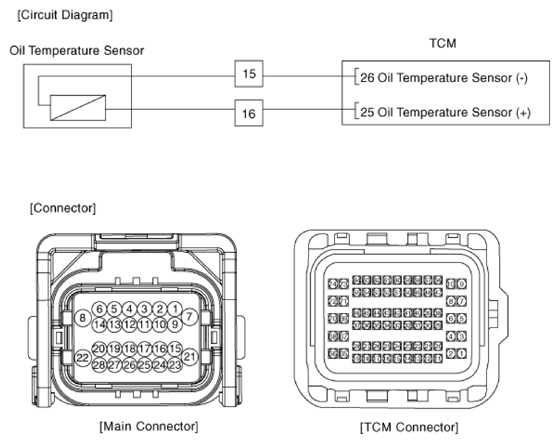

Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - 2.0L >> Transmission Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
