Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.
- Perform

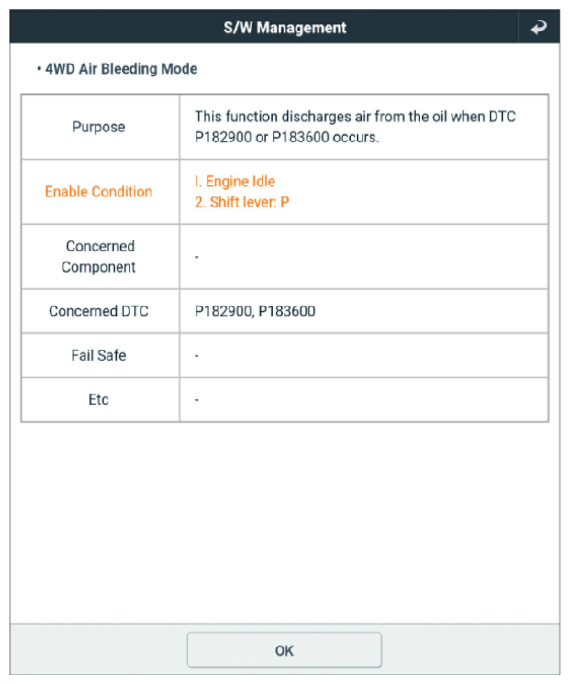

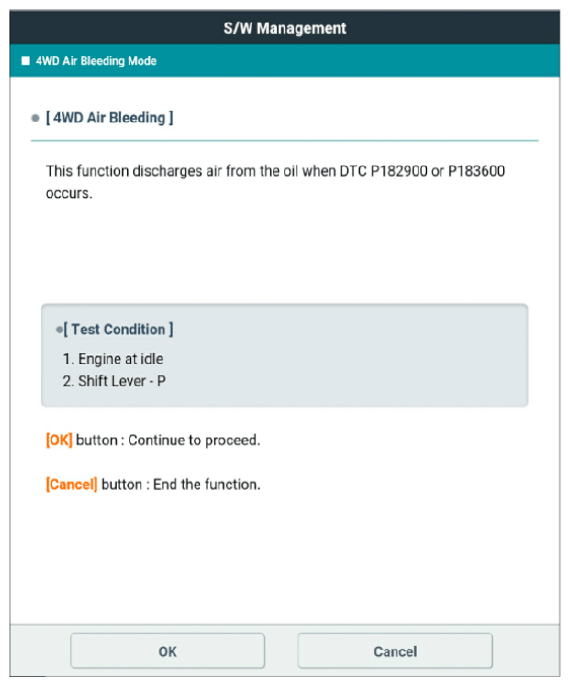

"Air Bleeding Mode" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Fig.1 to 4 |
CAUTION:
This is the function to discharge the air inside the oil.

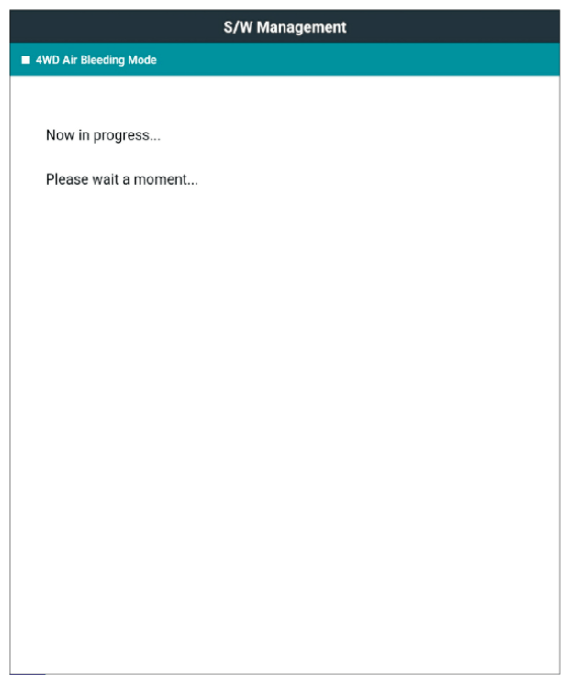

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.
- Perform

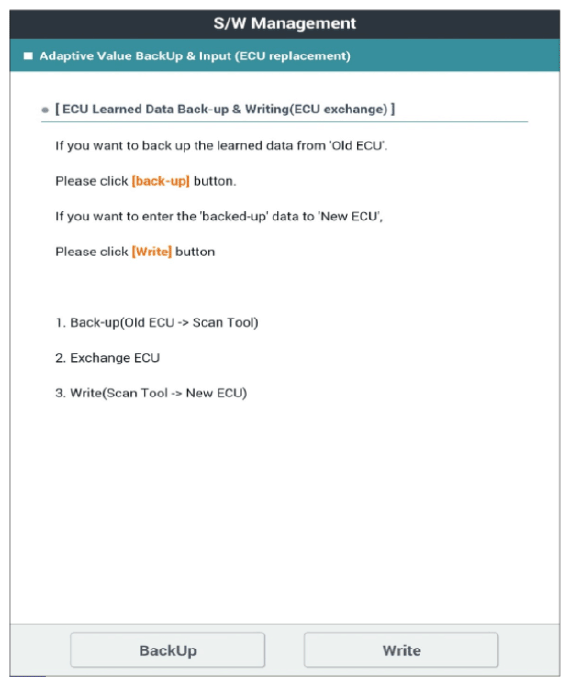

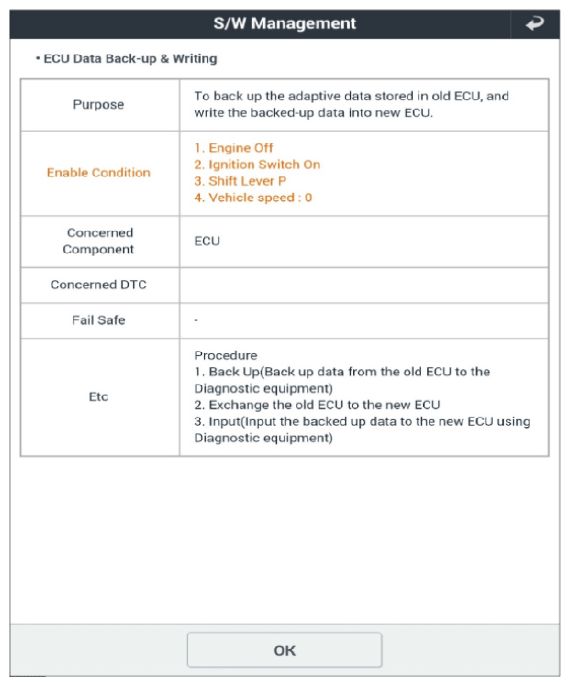

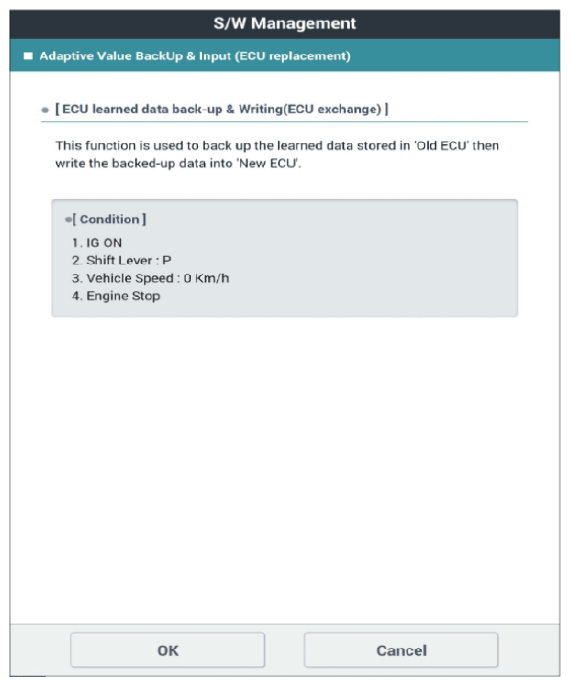

"Adaptive Value BackUp & Input (ECU replacement)" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Fig.1 to 9 |
CAUTION:
Perform the following procedure when replacing the ECU.

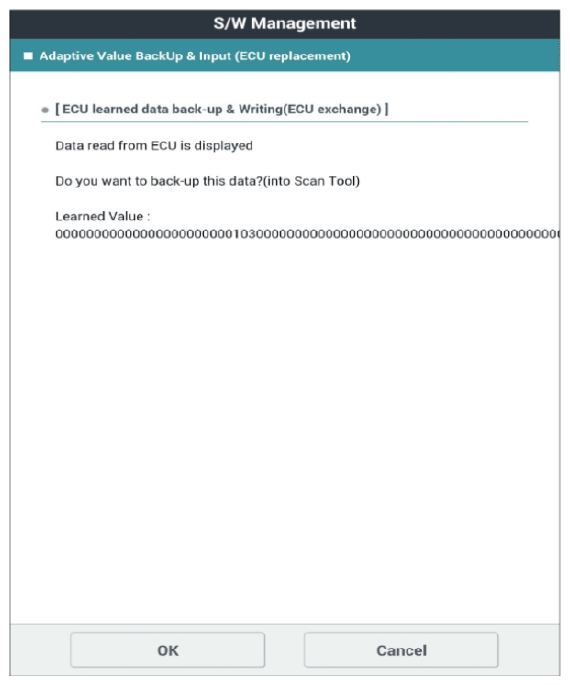

 Courtesy of KIA MOTORS AMERICA, INC.
|

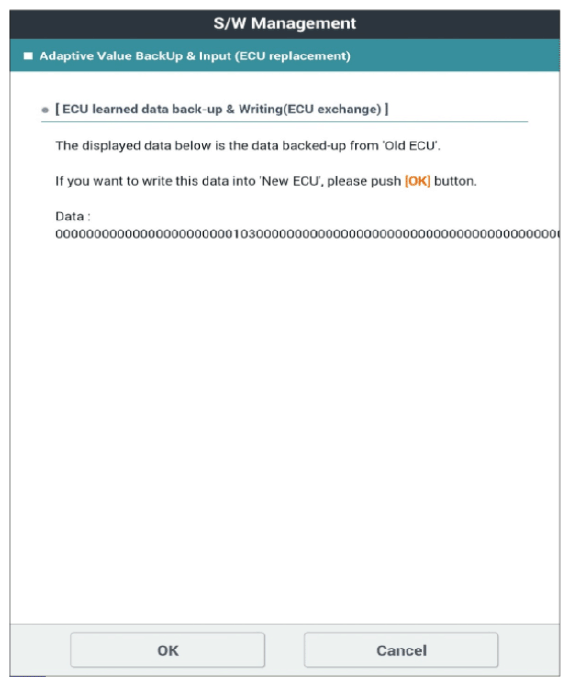

 Courtesy of KIA MOTORS AMERICA, INC.
|

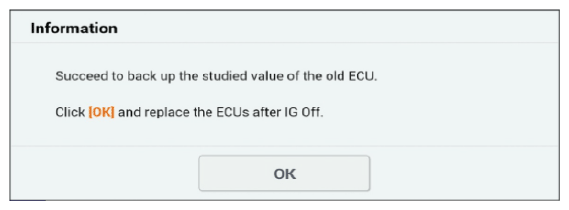

 Courtesy of KIA MOTORS AMERICA, INC.
|

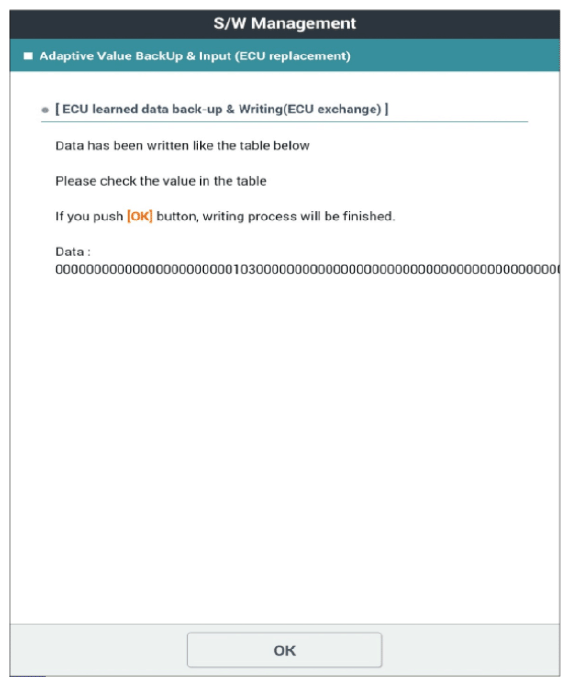

 Courtesy of KIA MOTORS AMERICA, INC.
|

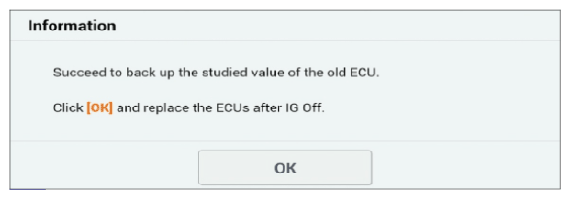

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.
- Perform

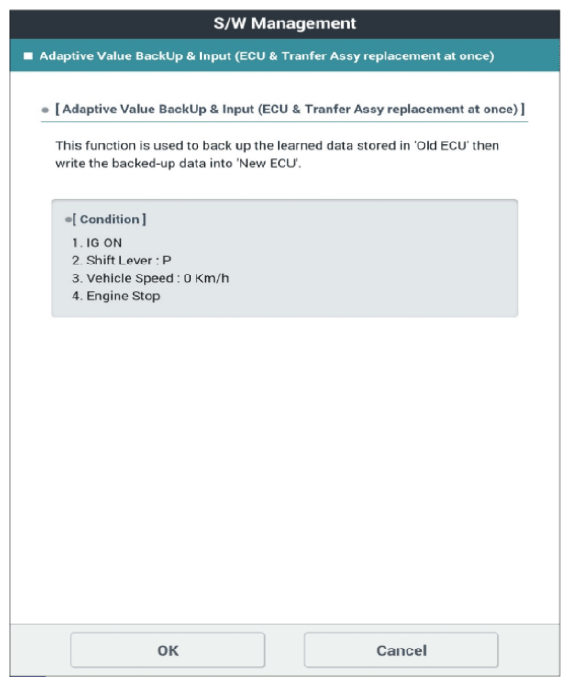

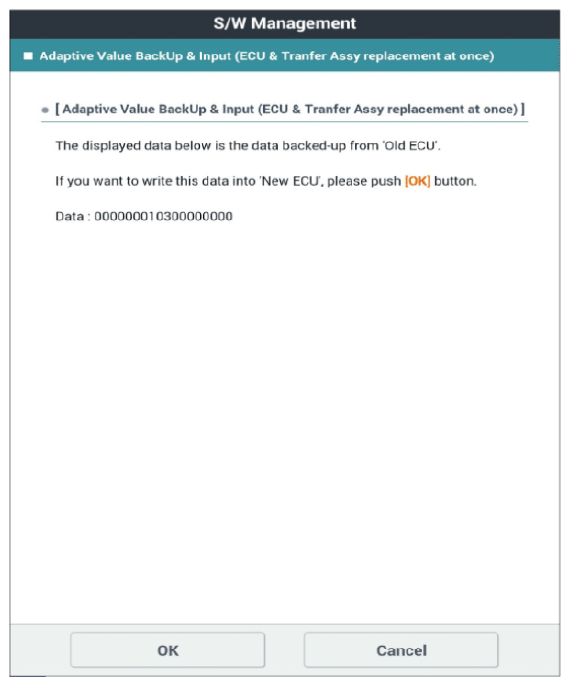

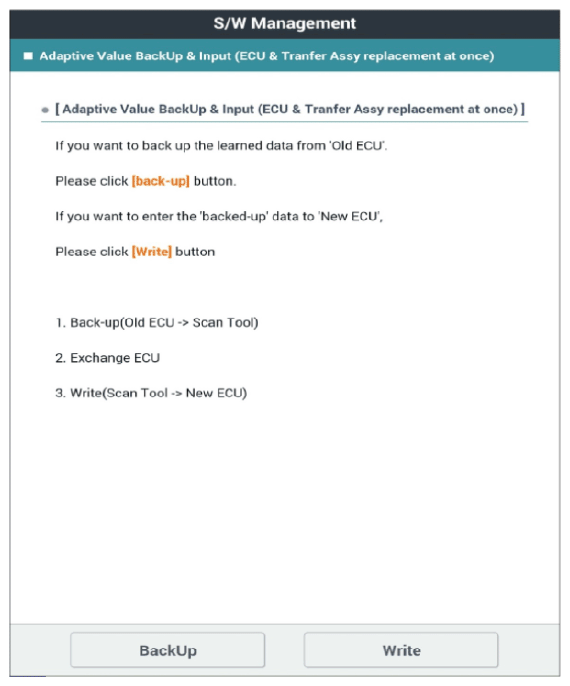

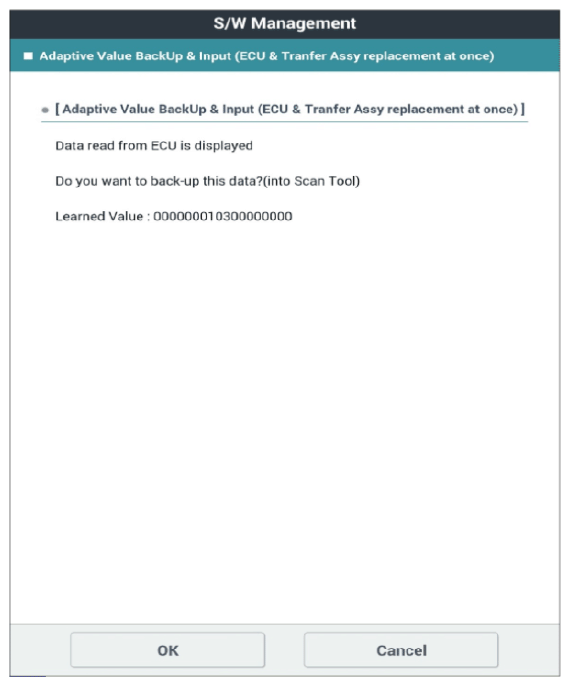

"Adaptive Value BackUp & Input (ECU & Tranfer Assy replacement at once)" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Fig.1 to 8 |
CAUTION:
Perform the following procedure when replacing the ECU & Transfer Assy at the same time.

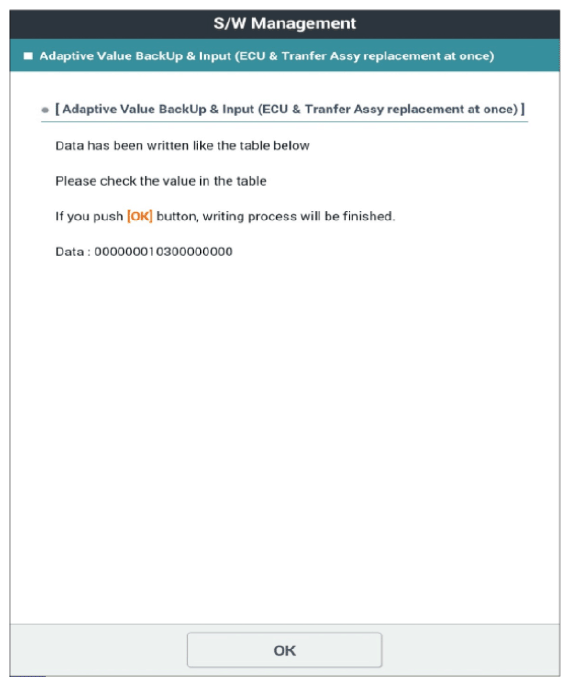

 Courtesy of KIA MOTORS AMERICA, INC.
|

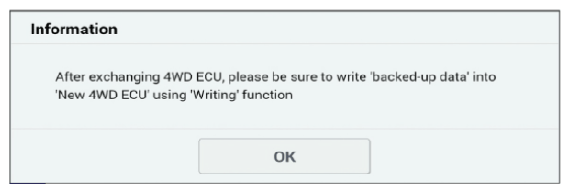

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
