  1. Switch "OFF" ignition, and connect KDS.
  2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  3. Select Variant coding mode.
  4. Follow steps on the screen as below.

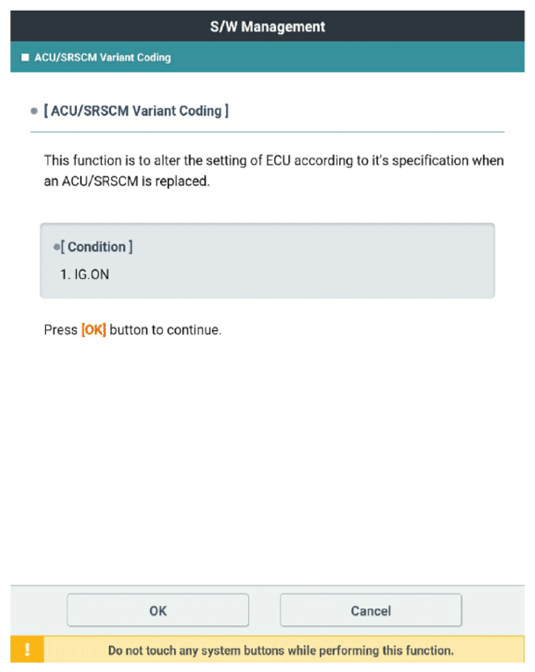

    1. Initial ACU Variant Coding
      G13424847Courtesy of KIA MOTORS AMERICA, INC.

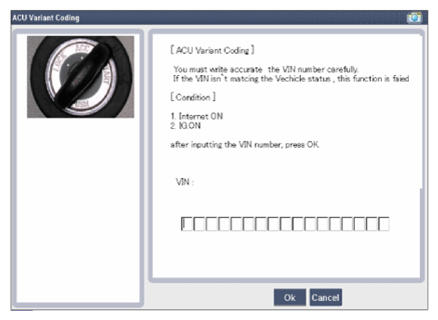

    2. Enter VIN Code
      G13424848Courtesy of KIA MOTORS AMERICA, INC.

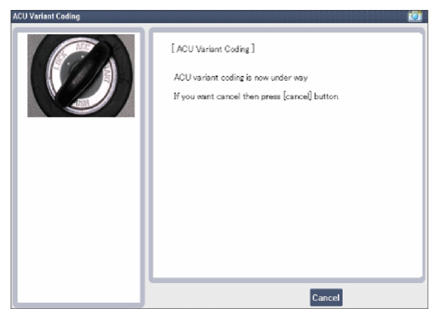

    3. Processing variant coding - 1
      G13424849Courtesy of KIA MOTORS AMERICA, INC.

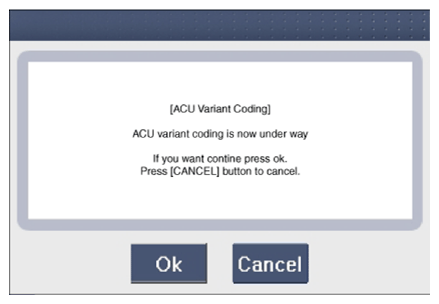

    4. Processing variant coding - 2
      G13424850Courtesy of KIA MOTORS AMERICA, INC.

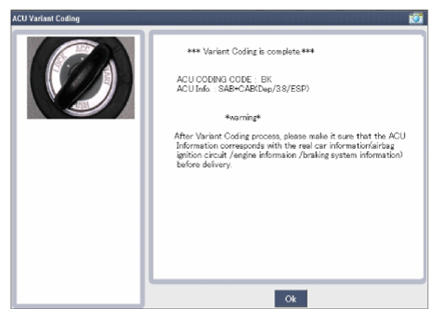

    5. Variant coding is completed
      G13424851Courtesy of KIA MOTORS AMERICA, INC.
      NOTE:

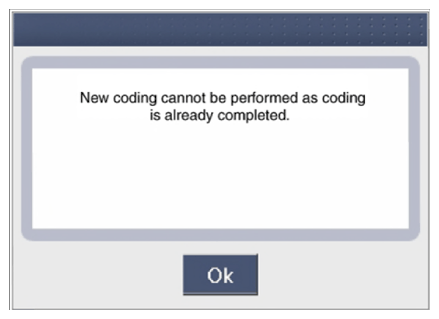

      1. This screen is displayed when the variant coding is attempted again on the SRSCM that has already performed variant coding.
        G13424852Courtesy of KIA MOTORS AMERICA, INC.

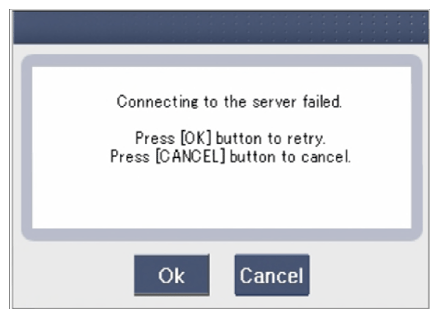

      2. Communication failure
      G13424853Courtesy of KIA MOTORS AMERICA, INC.
