Offline method on KDS (When internet connection is unavailable)

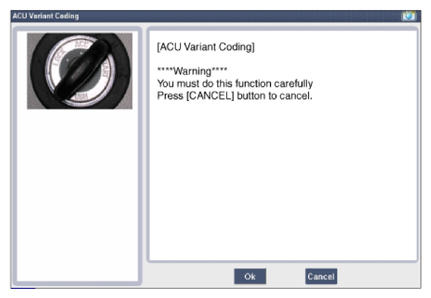

Initial ACU Variant Coding

Courtesy of KIA MOTORS AMERICA, INC.

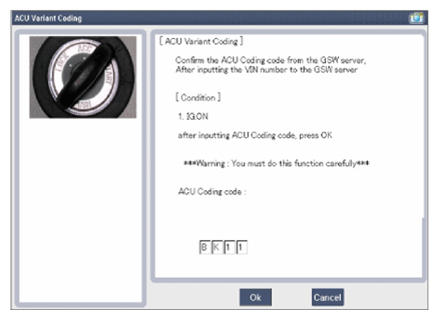

Enter ACU Coding Code

Courtesy of KIA MOTORS AMERICA, INC.

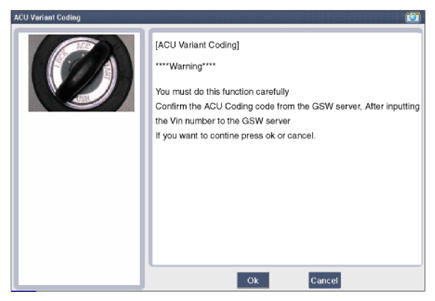

Recheck ACU Coding code

Courtesy of KIA MOTORS AMERICA, INC.

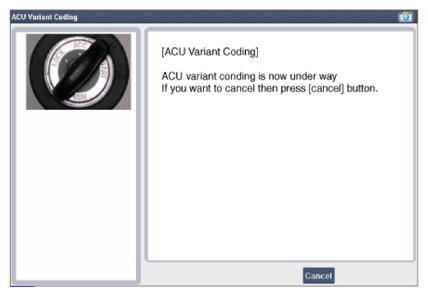

Processing variant coding - 1

Courtesy of KIA MOTORS AMERICA, INC.

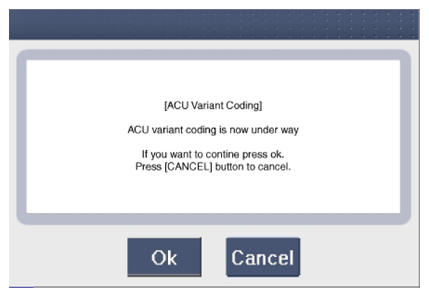

Processing variant coding - 2

Courtesy of KIA MOTORS AMERICA, INC.

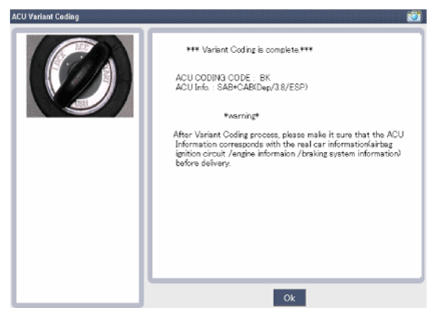

Variant coding is completed

Courtesy of KIA MOTORS AMERICA, INC.

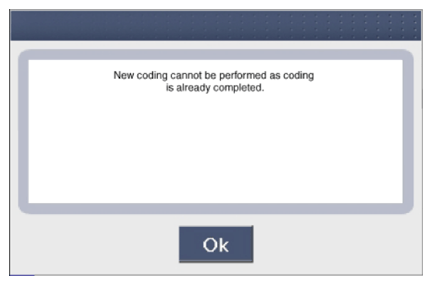

NOTE: This screen is displayed when the variant coding is attempted again on the SRSCM that has already performed variant coding.
