5 Door

WARNING: This page is about a different car, the 2020 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the liftgate trim.
(Refer to liftgate - "LIFTGATE TRIM ")

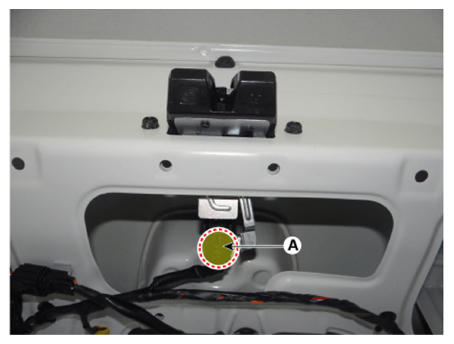

Disconnect the liftgate latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

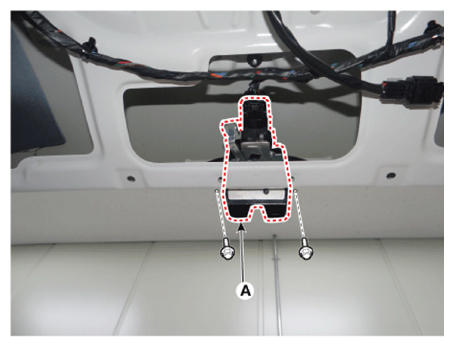

Remove the liftgate latch assembly (B) after loosening the mounting bolts (A).

Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: In the following cases, replace the latch base sub assembly or latch actuator assembly.

If the latch base sub assembly is on abnormal condition
If the latch actuator assembly is on abnormal condition

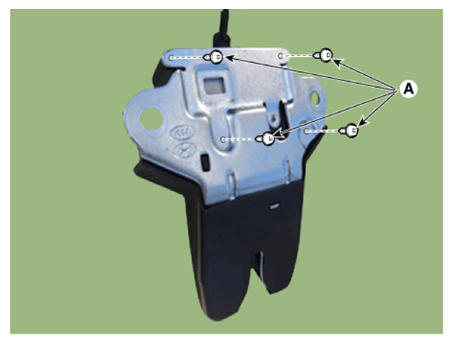

Loosen the screws (A) from the trunk lid latch assembly.

Courtesy of KIA MOTORS AMERICA, INC.

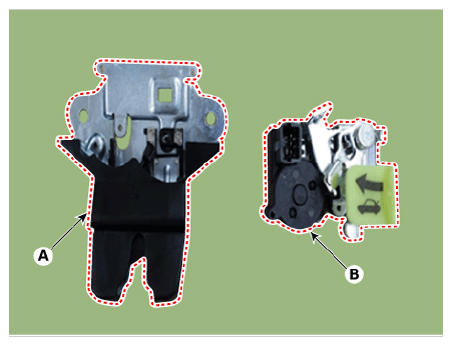

Separate the latch actuator assembly (B) from the latch base sub assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Information
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Adjust the liftgate alignment.
- Make sure the connectors are connected in properly.
