Repair Procedures: Removal

  1. Turn the ignition switch OFF.

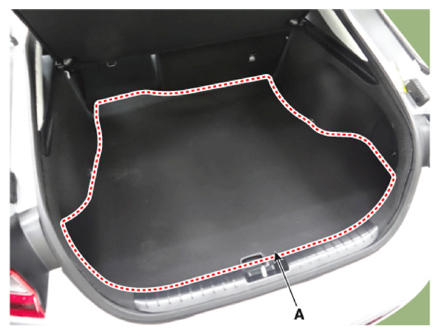

  2. Remove the luggage covering (A).
    G13423618Courtesy of KIA MOTORS AMERICA, INC.

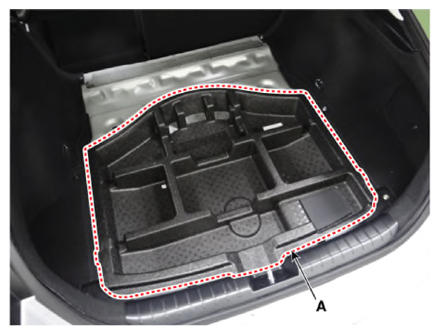

  3. Remove the luggage center tray (A).
    G13423619Courtesy of KIA MOTORS AMERICA, INC.

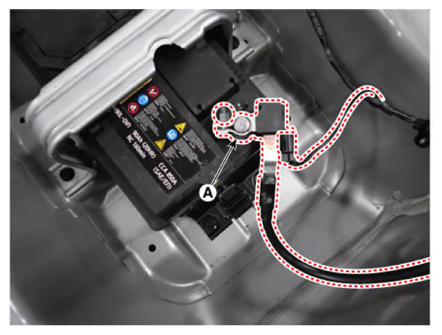

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G13423620Courtesy of KIA MOTORS AMERICA, INC.

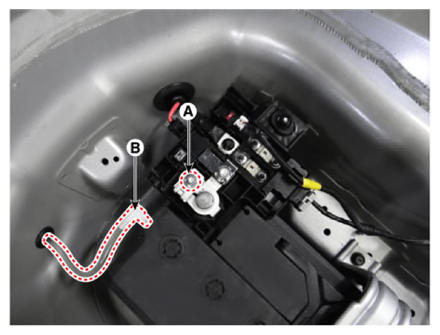

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G13423621Courtesy of KIA MOTORS AMERICA, INC.

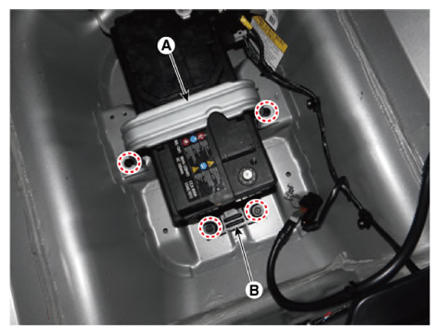

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G13423622Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the battery.
