Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory Seat (IMS) System >> Schematic Diagrams >> Components

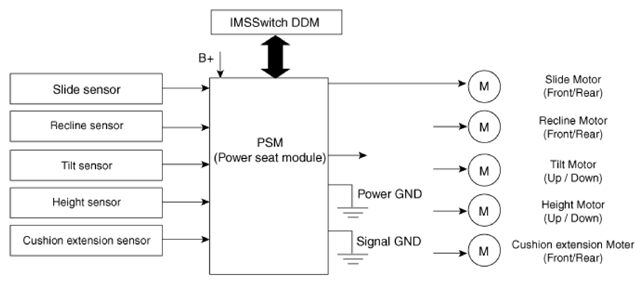

Schematic Diagrams: Components

G13426509

Courtesy of KIA MOTORS AMERICA, INC.
