Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Surround View Monitoring (SVM) System >> Surround View Monitor (SVM) Unit >> Components & Components Location >> Components

Components & Components Location: Components

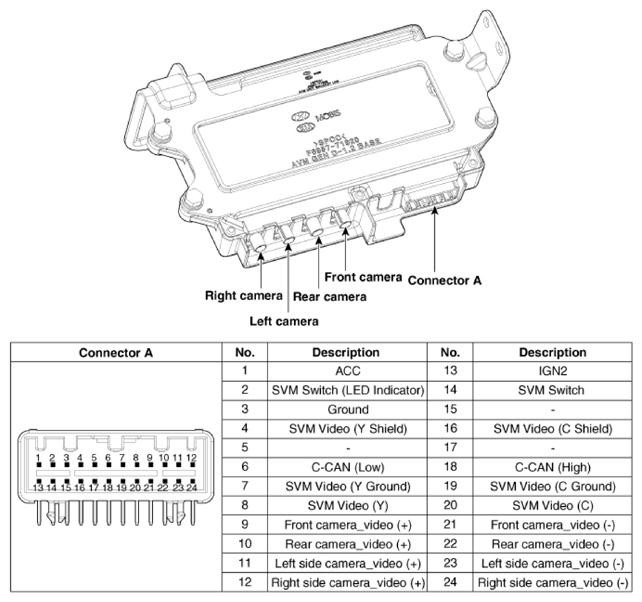

Fig 1: Surround View Monitor (SVM) Unit Connector End View And Terminal Description

G13426944

Courtesy of KIA MOTORS AMERICA, INC.

G13116649

Courtesy of KIA MOTORS AMERICA, INC.
